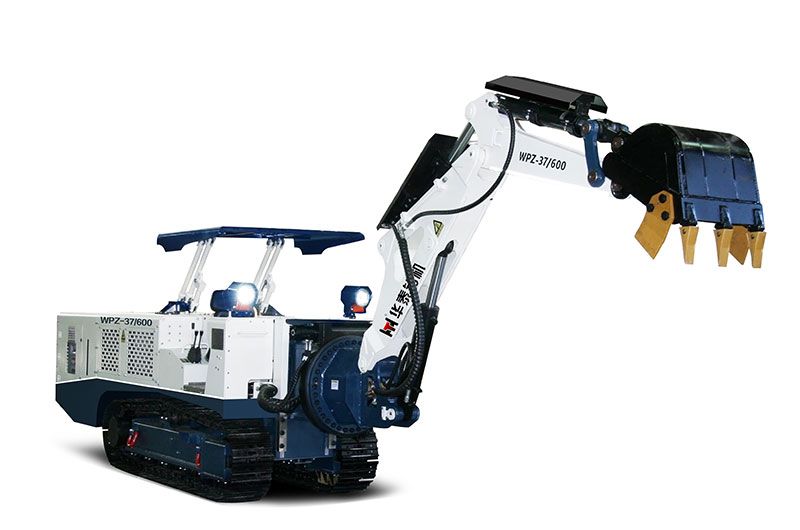

Coal Mine Repair Machine with Hydraulic Breaker, WPZ-37/600 (Machine for Tunnelling and Tunnel Repairs)
WPZ-37/600 coal mine repair machine is specially constructed for coal mine repair and maintenance, which is useful mining equipment for removing the road blockage in the mines. It can be equipped with a hydraulic breaker to crush rocks and coal blocks in an efficient manner. This machine is allowed to work on side wall, and floor in underground mine or tunnels.

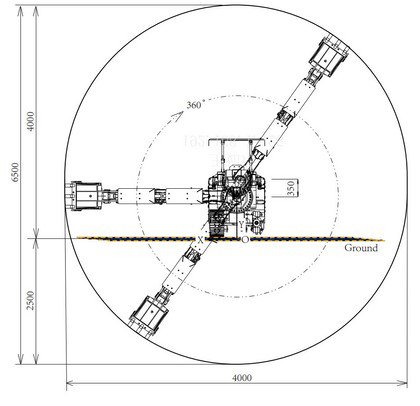

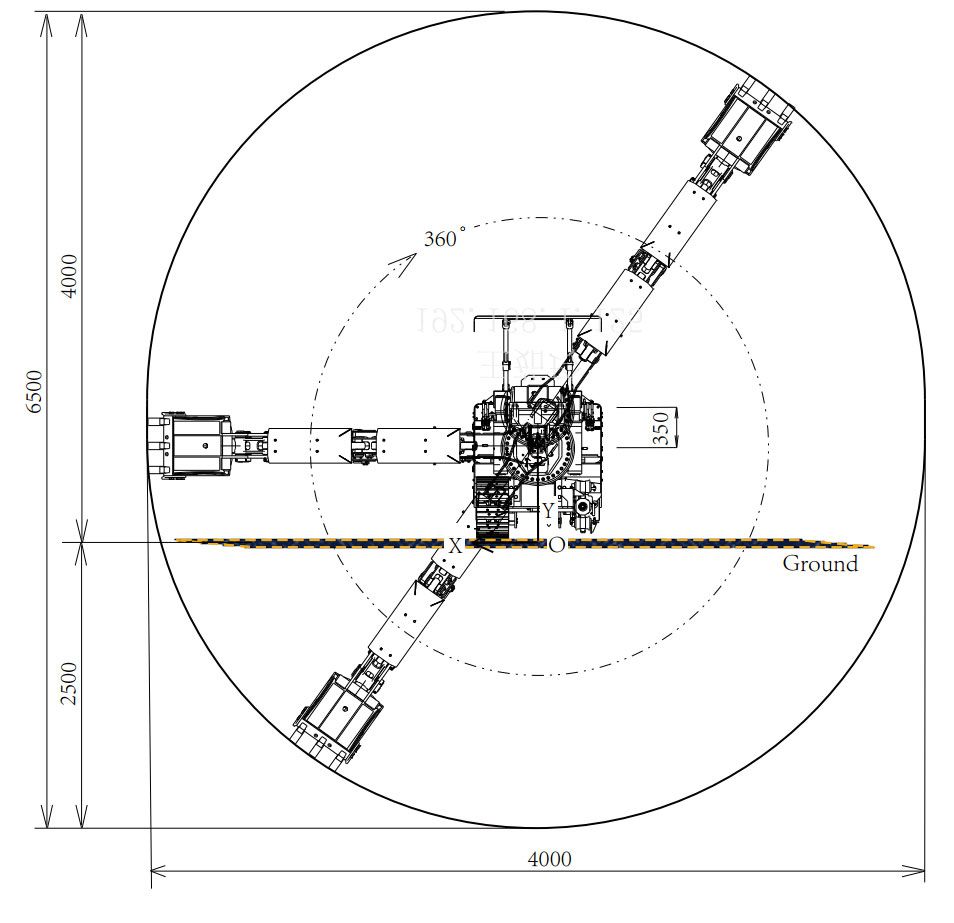

The coal mine repair machine is featured by compact construction, small footprint, low noise, and high working efficiency, which can be used with scraper conveyor. This results in higher efficiency of repair and maintenace in mines. The tunelling machine features rotation angle of 360°, swing angle of ±35° left/right (amplitude ≥5000 mm) , and 350 mm lift (up/down), which assists in tunnel construction or tunnel renovation and expansion, etc.
| Installed power | 37 kW | |
| Hydraulic system | Rated pressure | 21.5 MPa |
| Max. flow | 130L/min | |
| Max. temperature rise | 50℃ | |
| Max. oil temperature | 75℃ | |
| Travel mechanism | Drive mode | Integrated with hydraulic motor and reducer |
| Travel | Crawler | |
| Ground pressure | 0.06 MPa | |
| Travel speed | 24 m/min | |
| Ground clearance | 250mm | |
| Gradeability | 14° | |
| Bucket | Bucket capacity | 0.13 m3 |

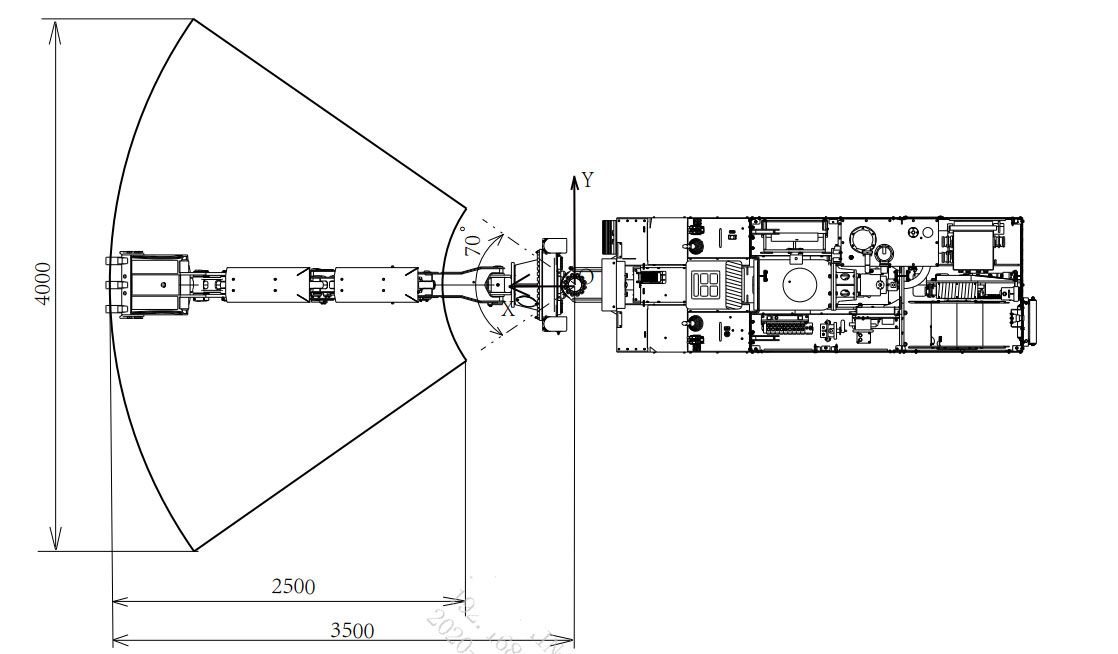

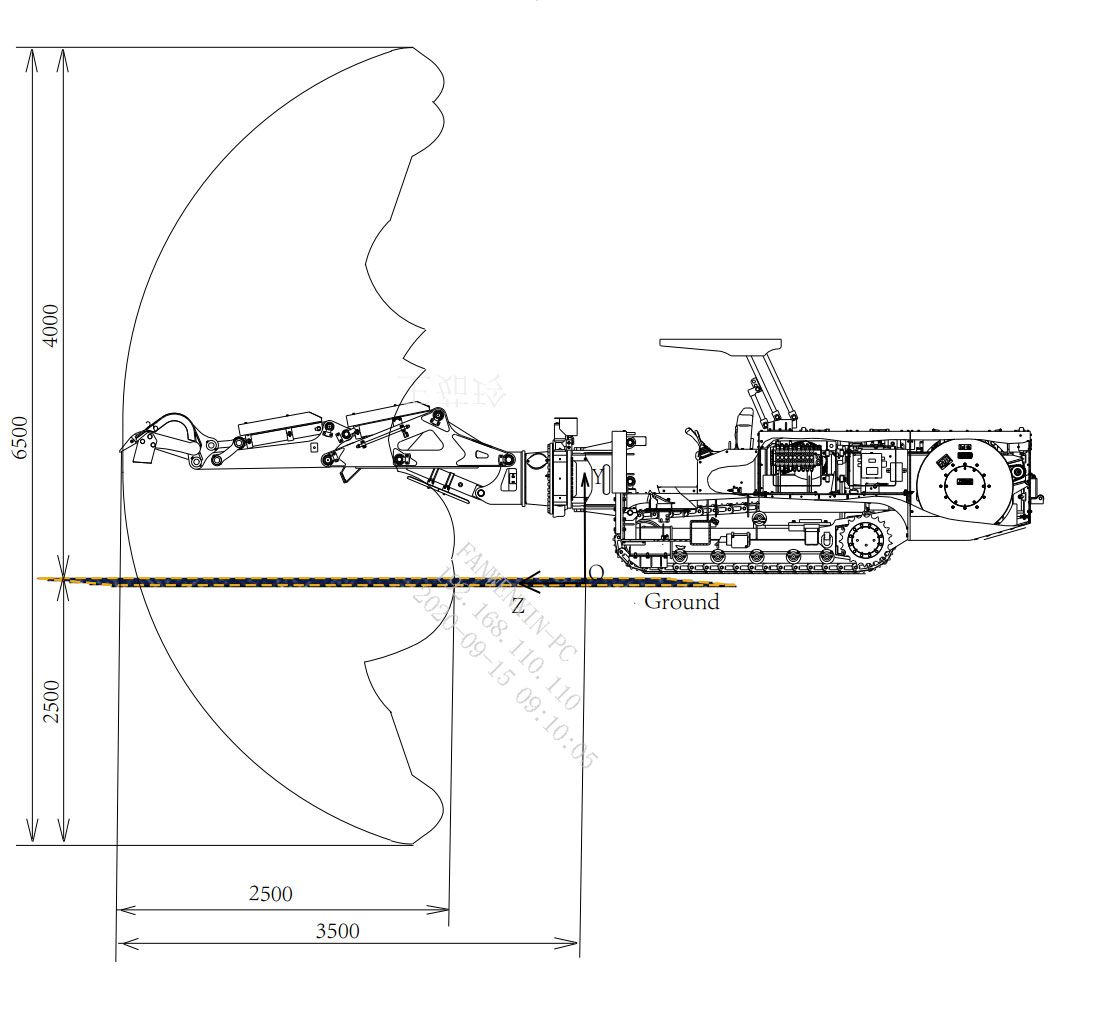

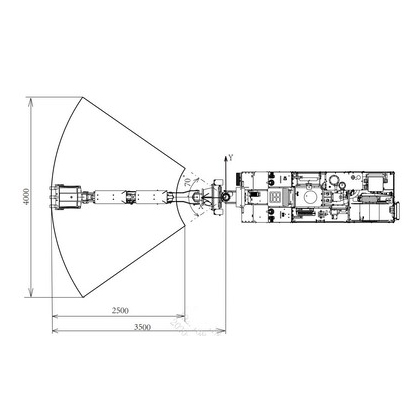

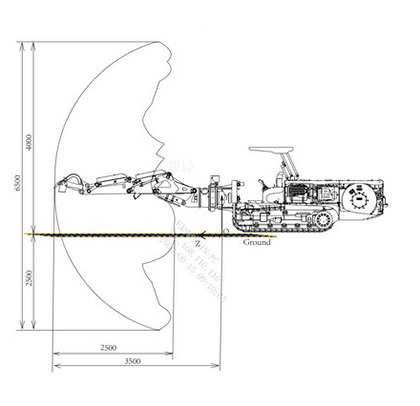

| Digging width | 4000 mm | |
| Digging reach | 3500 mm | |
| Digging height | 4000 mm | |
| Dumping height | 1400 mm | |
| Digging depth | 2500 mm | |
| Hydraulic breaker (optional) | Rated working pressure | 13 MPa |
| Max. flow | 60 L/min | |
| Impact frequency | 7.5～16 Hz | |
| Impact energy | 600 J | |
| Rod diameter | 70 mm | |
| Noise level | ≤120 dB(A) | |

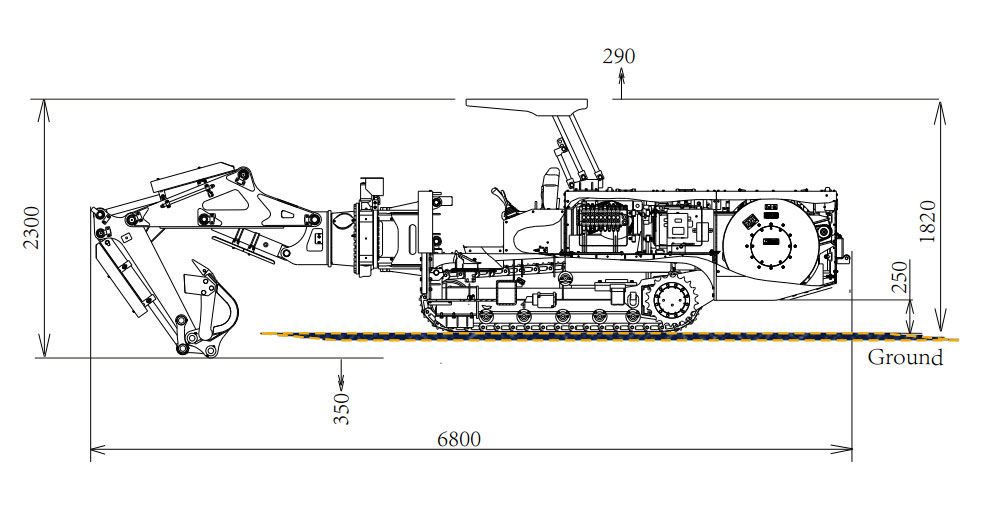

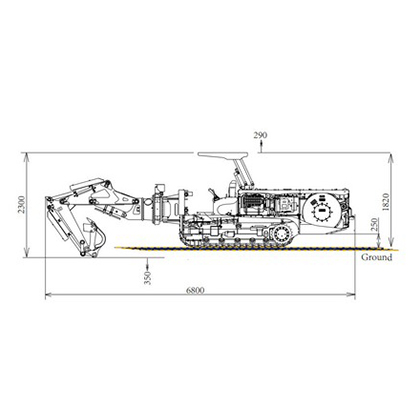

| Dimensions （L×W×H） | 6800×1200×1850（±50）mm | |
| Operating weight ±5% | 6500±325 kg | |
Get in Touch
Huatai is a Chinese company specialized in the design and batch production of rock drilling equipment. Since its inception in 2000, the company has been committed to manufacturing cutting edge products and providing the highest levels of customer service for a number of enterprises engaged in the mining, metallurgical and foundation engineer sectors.
Huatai has achieved continuous self-transcendence and filled several gaps in the domestic market through 20 years of ongoing innovation and development in the underground mining and rock drilling industry. Today, our product line includes more than 30 types of mine rock drilling machines which are fallen into three categories, i.e. underground mining equipment, coal mining equipment and shaft drilling jumbos. Years of our constant growth and improvement have resulted in a respectable achievement in the domestic rock drilling machine industry, increasing the safety, efficiency, and cost-effectiveness for underground mine engineering and tunneling construction operations.
Other Products
- Shaft Drilling Jumbo, Hydraulic Shaft Jumbo, YSJZ
YSJZ shaft drilling jumbo is a type of rock drilling machinery specially designed for vertical shaft construction in iron ore and non-ferrous metal mines. The shaft jumbo is a great alternative to be used in mining and underground construction projects where other drilling methods couldn't be adopted due to their technical or economic limits.
Read More +
- Hydraulic Drilling Jumbos, CYTJ45 (HT81)
CYTJ45 hydraulic drilling jumbo has been engineered for various mines and medium sized drifts & tunnels, with drilling coverage range of 4000x4000-6100x6100mm (WxL).
Read More +
The drilling machinery comes with fully hydraulic rock drill system and anti-jamming function, allowing for quick drilling speed with low consumption.

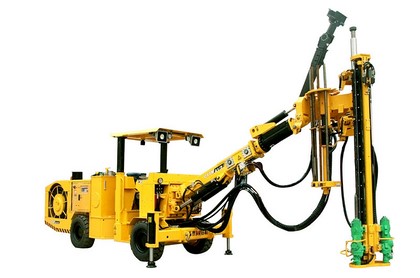

- Hydraulic Bolting Jumbo, CYTM41/2 (HT91)
CYTM41/2 hydraulic bolting jumbo is specially used for rock bolting in underground mines and tunnels with wall rock of complex structure and badly damaged rock formation. Our main focus is safety and bolt installation quality. Out high performance mining bolter ensures operator safety and comfort in underground works.
Read More +

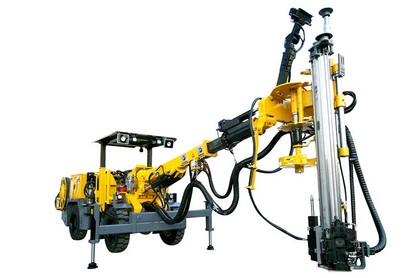

- Hydraulic Bolting Jumbo, CYTM41/2 (HT92)
