  • Hydraulic Drilling Jumbos, HT81
Underground Mining Equipment

Hydraulic Drilling Jumbos, HT81(for Tunneling)

Hydraulic Drilling Jumbos, HT81
Hydraulic Drilling Jumbos, HT81 Hydraulic Drilling Jumbos, HT81 Hydraulic Drilling Jumbos, HT81 Hydraulic Drilling Jumbos, HT81
Request a Quote

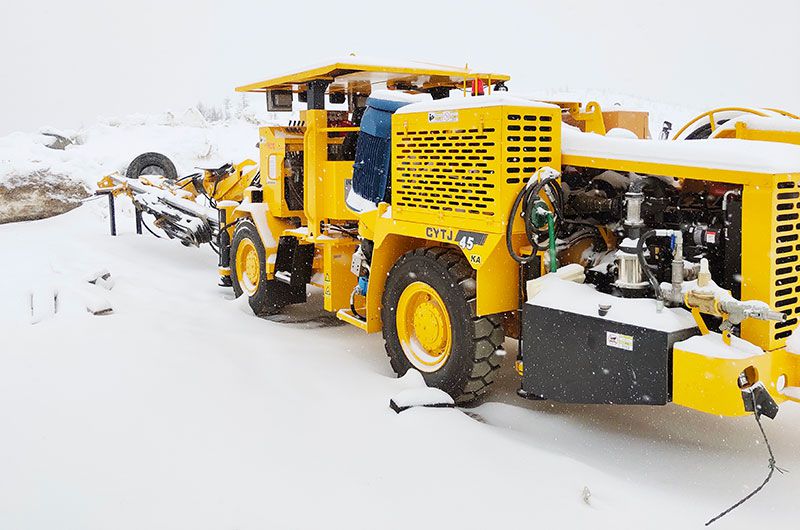

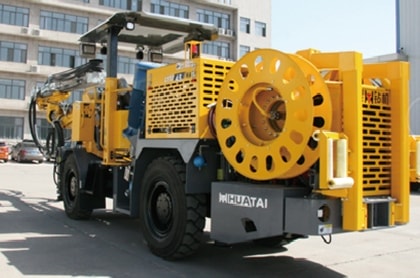

Our hydraulic drilling jumbo is equipped with a compact structure, small external dimensions, energy efficiency, low noise, multifunctionality, and high efficiency, enabling mechanized operations in rock tunneling and significantly improving excavation speed.

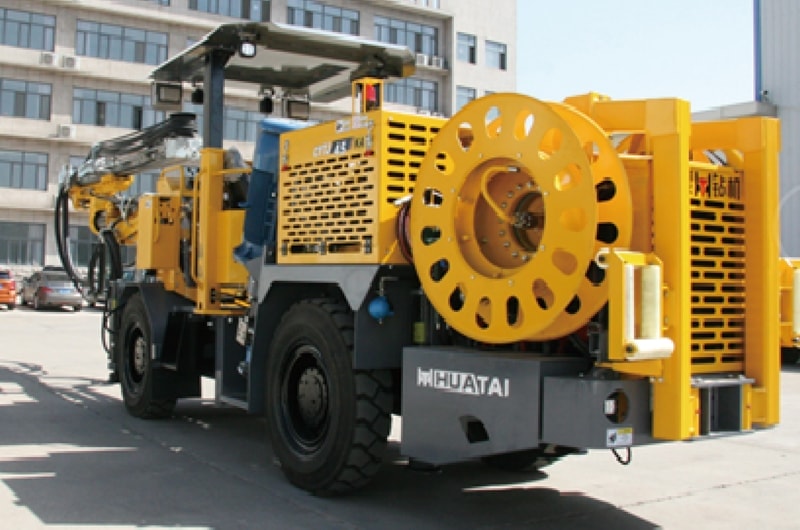

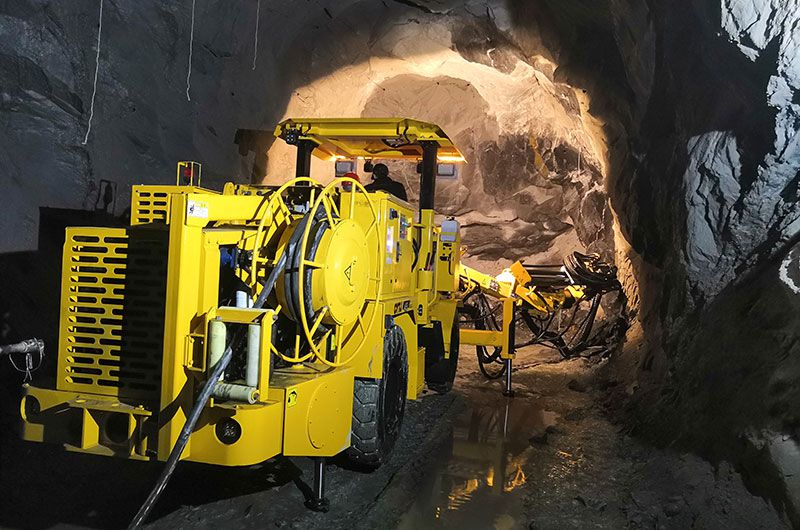

Suitable for tunneling operations in various underground passages and culverts, such as those in metal mines and hydropower projects, this equipment features a fully hydraulic drilling system and an anti-jamming function for drill steels.

The entire series of drilling jumbos offers excellent maneuverability, a small turning radius, and a climbing capacity of 14°, ensuring both construction efficiency and quality.

Details

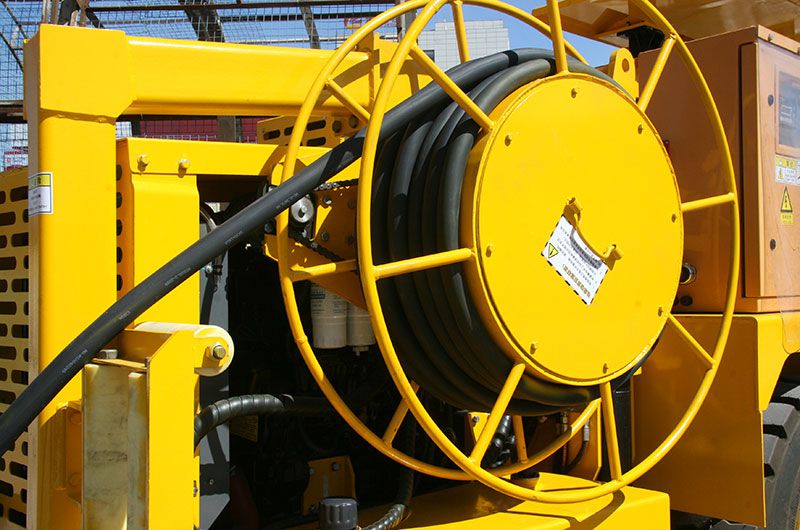

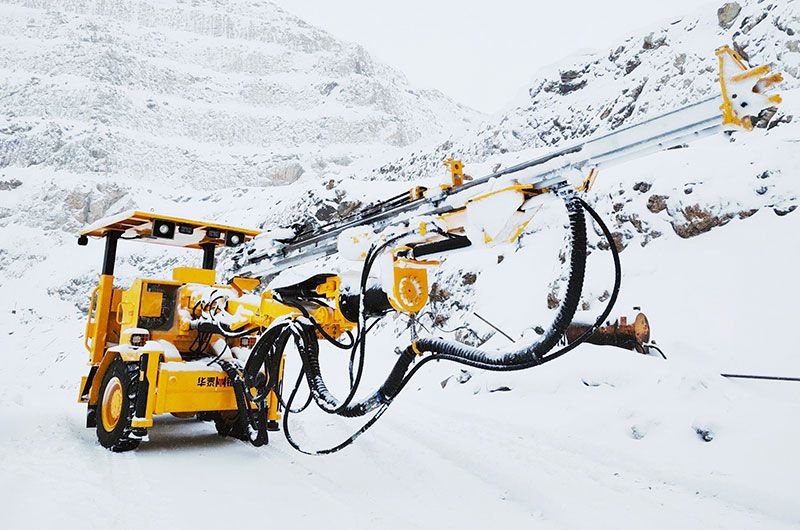

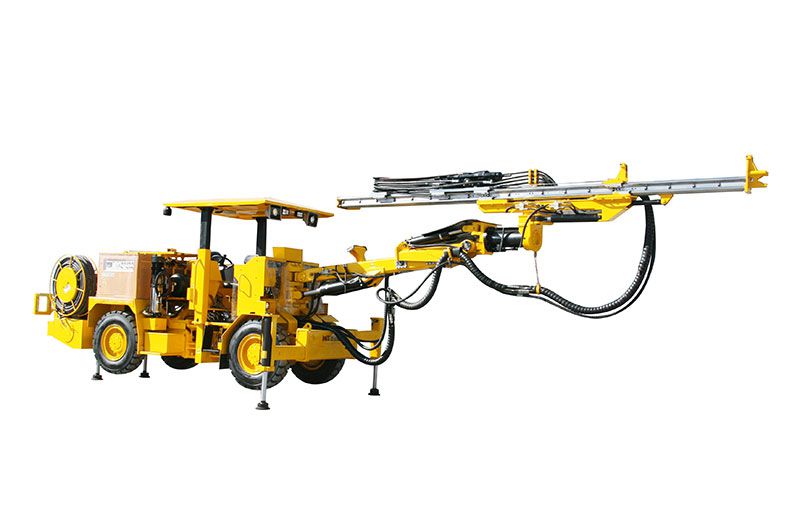

  • Hydraulic Drilling Jumbos, HT81
  • Hydraulic Drilling Jumbos, HT81
  • Hydraulic Drilling Jumbos, HT81
  • Hydraulic Drilling Jumbos, HT81
  • Hydraulic Drilling Jumbos, HT81
  • Hydraulic Drilling Jumbos, HT81
Standard Configurations

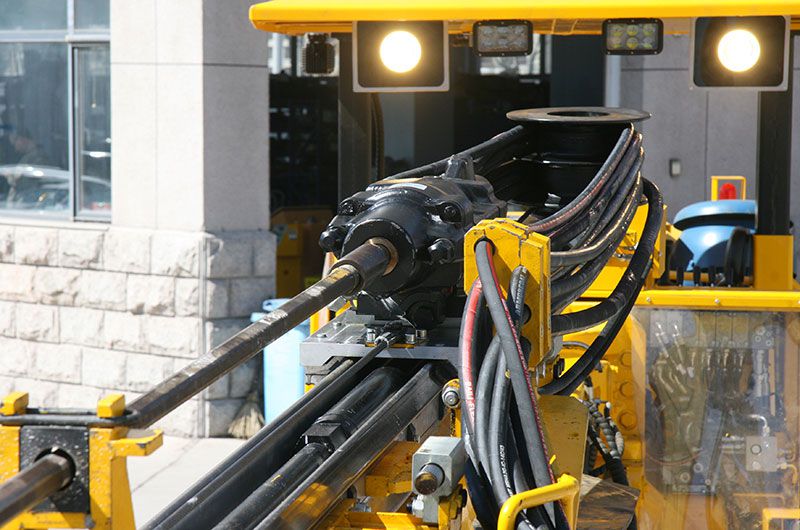

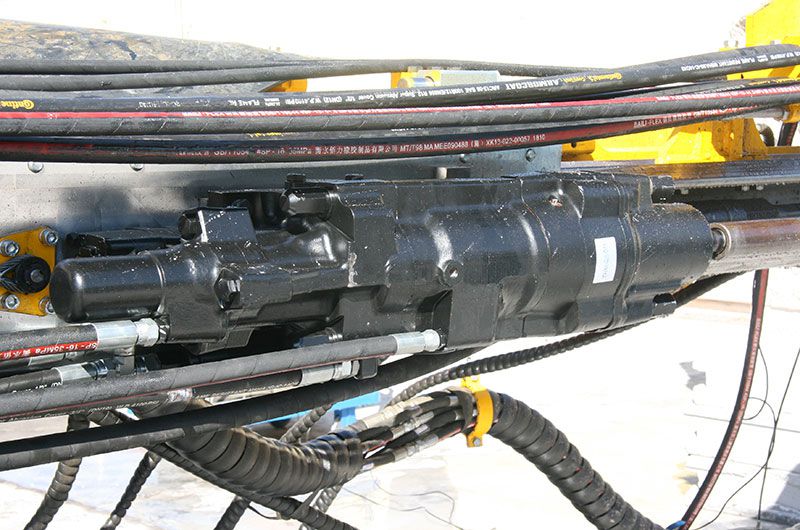

  • Drifter

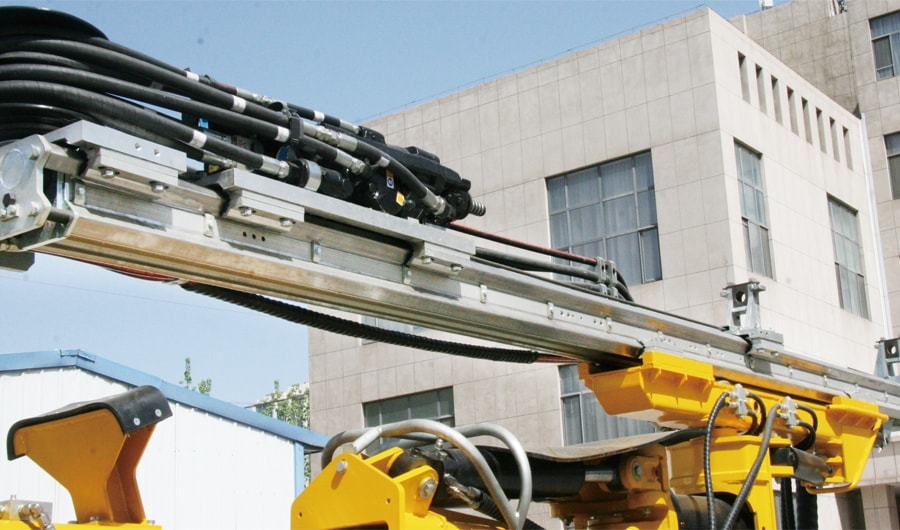

  • Boom with double triangle floating support system
  • Anti-jamming function

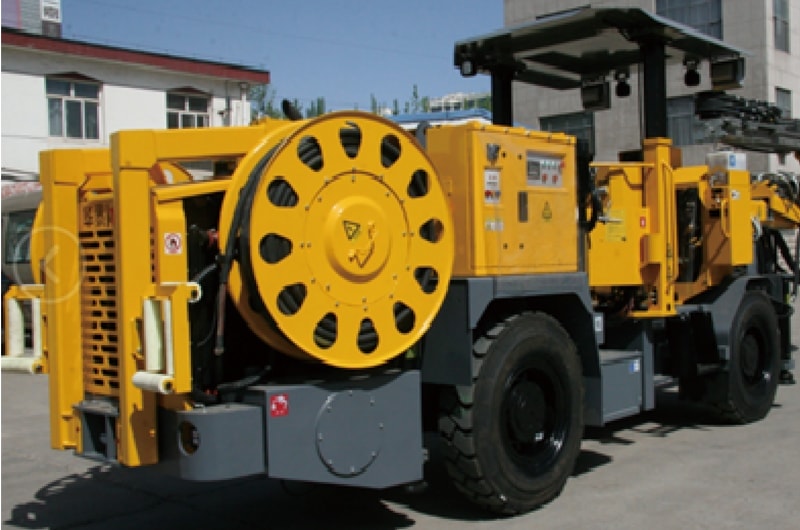

  • Chassis with 4-cylinder diesel engine

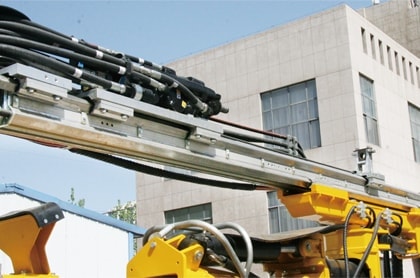

  • Feed
  • Control system
Technical Specifications
  • Hydraulic Drilling Jumbos, HT81
  • Hydraulic Drilling Jumbos, HT81
  • Hydraulic Drilling Jumbos, HT81
Model HT81

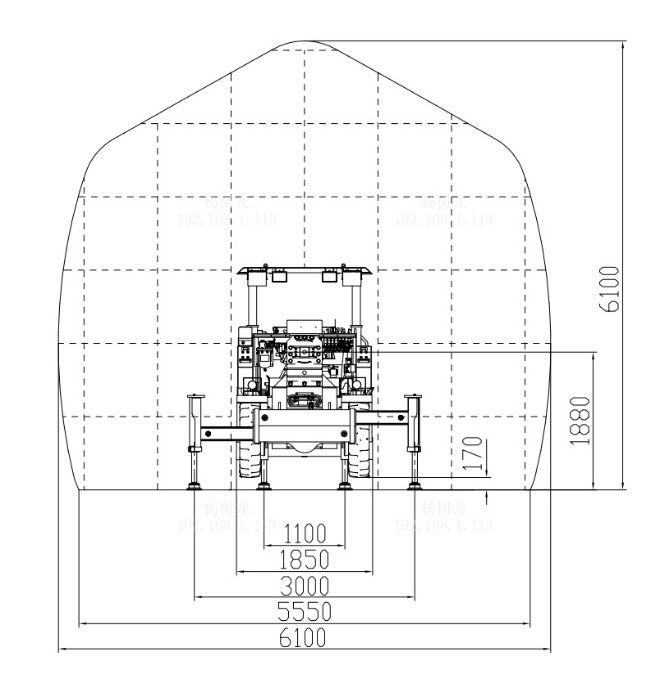

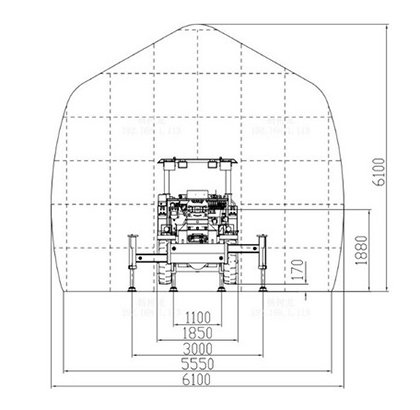

Applicable cross section 4000x4000--6100x6100mm

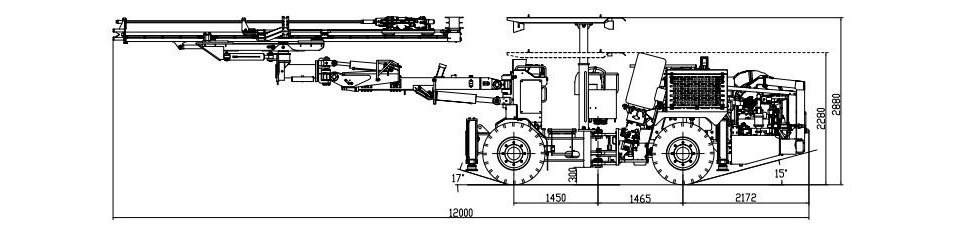

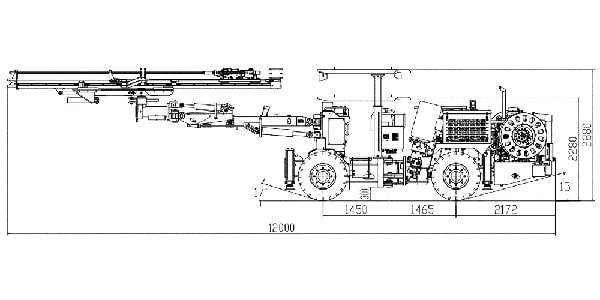

Overall dimensions (L×W×H) 12000x1850x2280(2880)mm
Ground clearance 300mm
Overall weight 13500kg

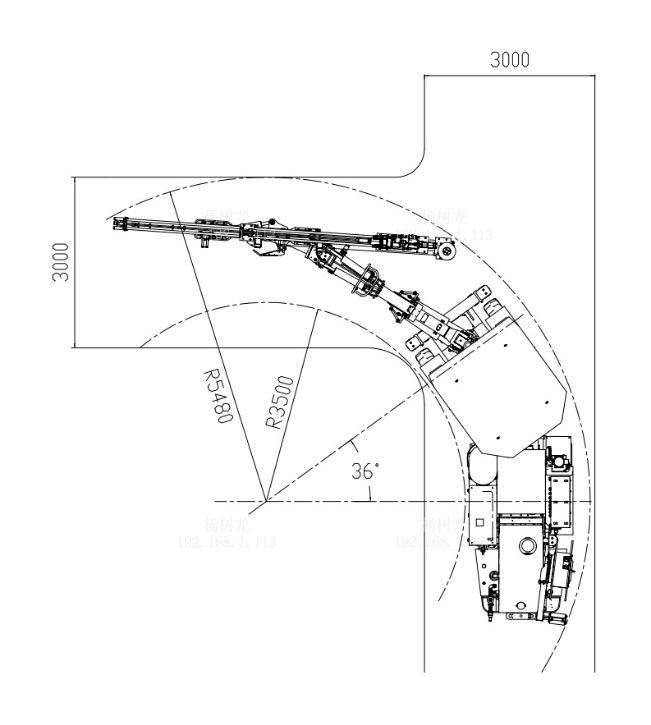

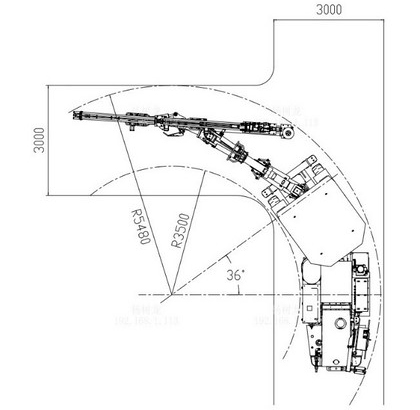

Min. turning radius Inner: 3500 mm / Outer: 5480 mm
Gradeability 14°
Speed ≤15km/h
Hydraulic oil tank 120L
Drifter
Model RC2200
YYG18U
YYG22U
HC95LMa
Power 21kW 18kW 22kW 21kW
Frequency 55Hz 57Hz 53Hz 58Hz
Pressure 120-220bar 130-200bar 180-200bar 180-200bar
Slewing system Independent Independent Independent Independent
Slewing speed 0-285r/min 0-220r/min 0-220r/min 0-303r/min
Max. Torque 720N.m 1050N.m 1050N.m 764N.m
Feeder
Total length 5262/5972mm 5262/5972mm 5972mm 5972mm
Drill rod length 3700/4305mm 3700/4305mm 4305mm 4305mm
Hole depth 3370/3970mm 3370/3970mm 3970mm 3970mm
Weight 630/660kg 610/640kg 640kg 640kg
Feed force 13kN 13kN 13kN 13kN
Drill boom
Boom extension 1250mm
Horizontal hole coverage Full coverage
Boom rotation ±180°
Boom (lift/tilt angle) +60°/-30°
Boom swing angle ±35°
Boom weight 2015kg
Water and compressed air system
Max. flow rate of pump (12bar) 4m³/h
Air displacement of compressor 1m³/min
Electric drive system
Model RC2000/YYG22U/HC95LMa YYG18U
Total power 85.5kW 65.5kW
Main motor power 75kW 55kW
Rated voltage 380V (customized)
Chassis
Engine Dongfanghong diesel engine
Rated power(2200r/min) 73.6kW
Torque (1650r/min) 319.5N.m
Hydraulic system Hydraulic proportional control valves
Anti-jamming function
Fail-safe brake system
