Underground Mining Equipment

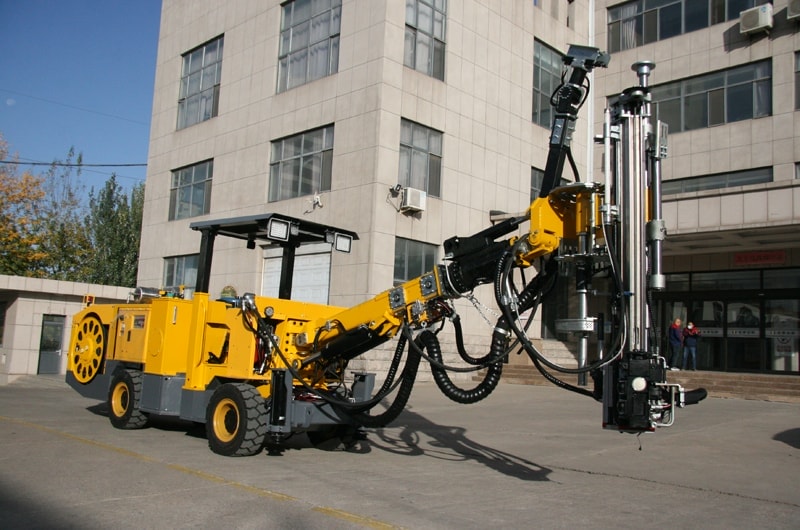

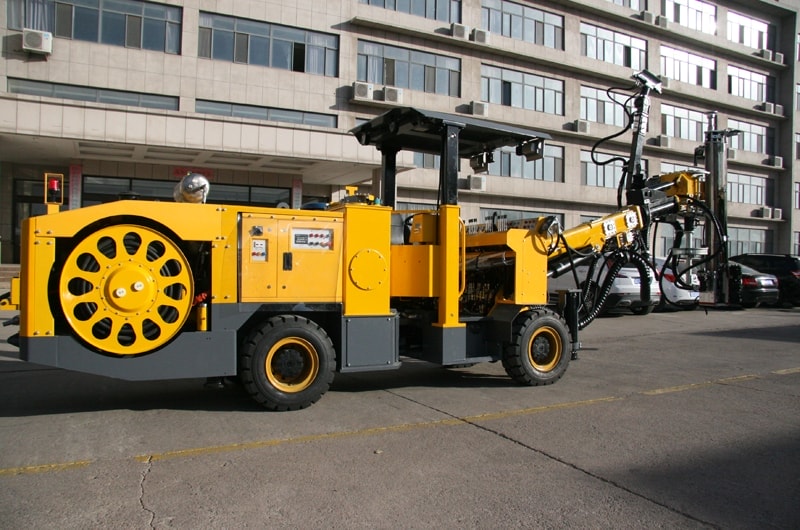

Hydraulic Bolting Jumbo, HT92

Hydraulic Bolting Jumbo, HT92
Hydraulic Drilling Jumbo, HT72-B Hydraulic Bolting Jumbo, HT92 Hydraulic Bolting Jumbo, HT92
Request a Quote

HT92 hydraulic bolting jumbo is specially used for rock bolting in underground mines and tunnels with wall rock of complex structure and badly damaged rock formation. Our main focus is safety and bolt installation quality. Out high performance mining bolter ensures operator safety and comfort in underground works.

The rock bolting jumbo is suitable for the drifts and tunnels with min. section of 2.8x2.8m. It's featured by compact design, small size, low fuel consumption, low noise, high working efficiency. The power type of bolting rig can be easily switched to accommodate different underground works. This hydraulic bolting jumbo has been widely used for rock reinforcement in drifts, tunnels, caverns, etc., which provides uncompromised safety for underground workers and euqipment.

Technical Specifications
Number of rods 10 pcs
Overall dimensions (L×W×H) 10000×1750×2070(2780)mm
Drifter RC1200, HC25
Power (drifter) 14 kW / 8 kW
Total length (feed) 3070 / 3200 mm
Drill rod length 2475 mm
Split bolt 2000 mm
Resin grouted bolt 2200 mm
Hole depth 2280 mm
Rock bolt length 1500-2500 mm
Retractable length 900 mm
Feed force 10 kN
Feed extension 480 mm
Boom (lift/tilt angle) 50°/-30°
Boom swing angle ±35°
Main motor power 55 kW
Rated voltage 380V (customized)
Gradeability 14°
Overall weight 13.5 T
Cable length 70 m
Outside Dimensions of Bolting Jumbo
Side ViewSide View
Turning RadiusFront View

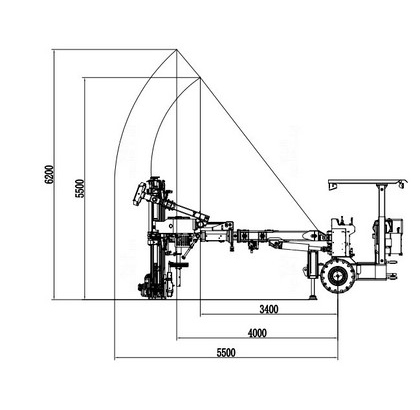

Working CoverageWorking Coverage
Working CoverageWorking Coverage
Working CoverageWorking Coverage
Turning RadiusTurning Radius
