Hydraulic Drifter

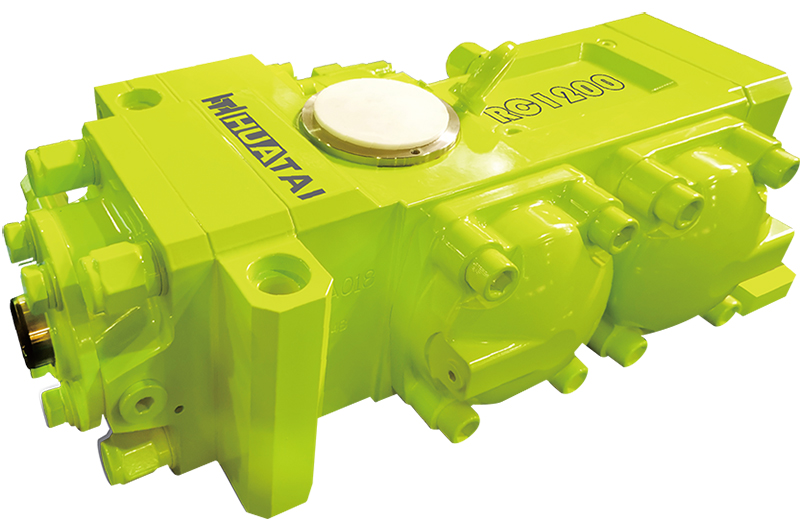

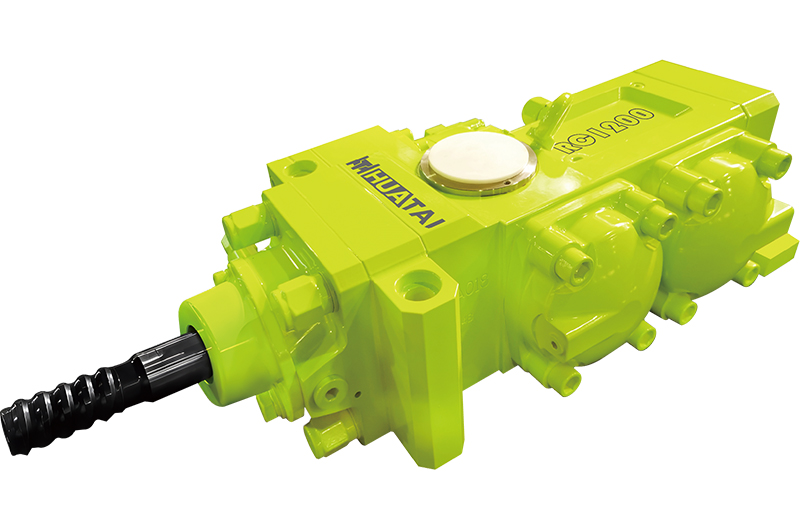

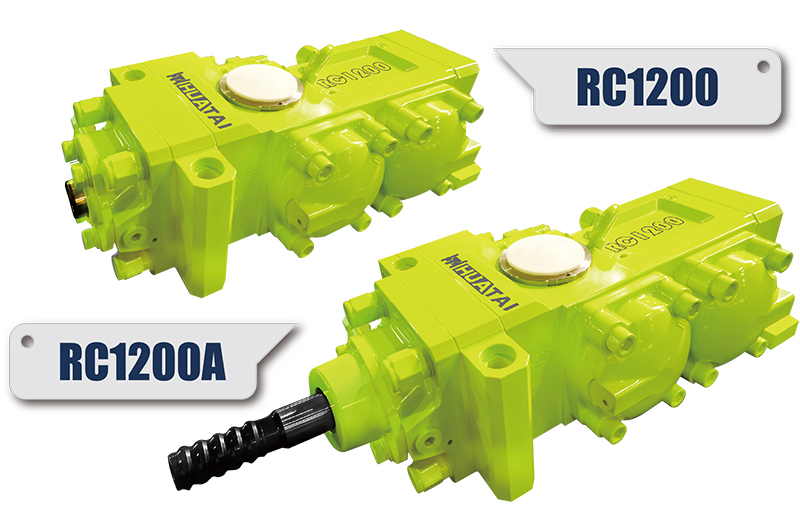

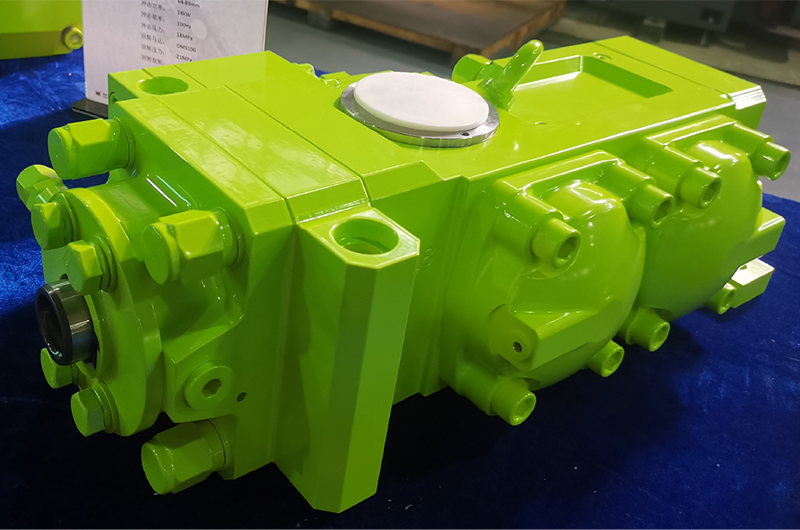

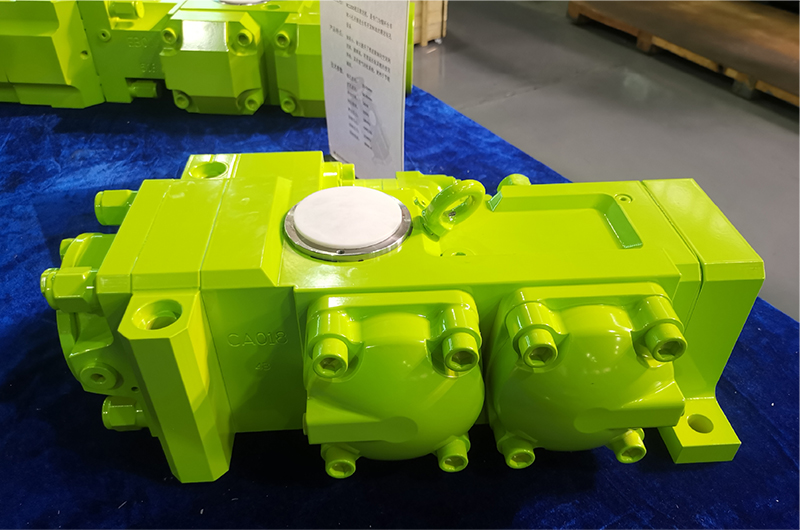

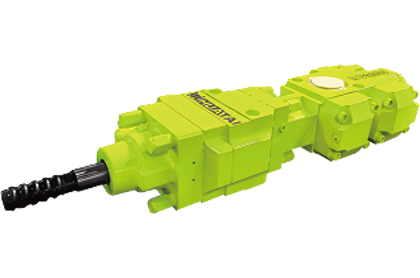

Hydraulic Drifter, RC1200/RC1200A
Engineered for high-frequency precision, the RC1200/RC1200A hydraulic drifter is the ideal solution for bolt drilling rigs, small tunneling jumbos, and shaft drilling projects. Designed with insights from leading domestic and global technologies, this drifter brings exceptional speed and efficiency to anchor bolt drilling and blast hole creation.
The compact and robust structure of this hydraulic drifter ensures reliable performance even in tight underground spaces, making it the preferred choice for projects that demand both power and precision. Elevate your drilling efficiency with these hydraulic drifters. Contact us today to equip your projects with power, precision, and reliability.
- High Impact Power Delivers a powerful 14kW impact, enabling rapid rock penetration.
- Durability and Cost Efficiency Engineered for long-lasting use with low maintenance costs.
- Minimized Downtime Ample stock availability reduces maintenance waiting times, keeping projects on schedule.
- Bolt drilling for mine support
- Tunnel excavation
- Shaft drilling
- Construction and reinforcement projects
| RC1200 | RC1200A | |||
| Performance Parameters | Drilling Diameter | 33 - 70 mm | 43 -70 mm | |
| Impact Power | 14 kW | 14 kW | ||
| Impact Frequence | 100 Hz | 95Hz | ||
| Flow Rate | 100 L/min | 100 L/Min | ||
| Operating Pressure | 120 - 180 bar | 120 – 180 bar | ||
| Shank Type | R20, R22（Female Shank） | R25 R28（Male Shank） | ||
| Weight | 126 kg | 130 kg | ||
| Dimensions | Length (without shank) | 564 mm | 673 mm | |
| Width | 325 mm | 325 mm | ||
| Height (Vertical Distance) | 90 mm | 90 mm | ||
| Height(Horizontal Distance) | 173 mm | 173 mm | ||
| Rotation Parameters | Motor Model | OMS 100 | OMS125 | OMS160 |
| Rotation Pressure | 210 bar(max) | 210 bar(max) | ||
| Torque | 390 N.m | 490 N.m | 610 N.m | |
| Rotation Speed | 0 - 430 rpm | 0 - 330 rpm | 0 - 270 rpm | |
| Flow Rate | 60 L/min | 60 L/min | 60 L/min | |
| Flushing Flow and Pressure | Water Pressure | 20 bar(max) | 20 bar(max) | |
| Water Consumption | 40 - 80 L/min | 40 – 80 L/min | ||
| Shank Lubrication | Air Pressure | 2.5 bar | 2.5 bar | |
| Air Consumption | 260 L/min | 260 L/min | ||
| Lubricant Type | Turbine oil 100 | Turbine oil 100 | ||
| Oil Consumption | 10 - 15 drops/min | 10 - 15 drops/min | ||
| Accumulator | Medium | Nitrogen（N₂） | Nitrogen（N₂） | |
| High Pressure | 40 bar | 40 bar | ||
| Low Pressure | 4 bar | 4 bar | ||
Get in Touch
Huatai is a Chinese company specialized in the design and batch production of rock drilling equipment. Since its inception in 2000, the company has been committed to manufacturing cutting edge products and providing the highest levels of customer service for a number of enterprises engaged in the mining, metallurgical and foundation engineer sectors.
Huatai has achieved continuous self-transcendence and filled several gaps in the domestic market through 20 years of ongoing innovation and development in the underground mining and rock drilling industry. Today, our product line includes more than 30 types of mine rock drilling machines which are fallen into three categories, i.e. underground mining equipment, coal mining equipment and shaft drilling jumbos. Years of our constant growth and improvement have resulted in a respectable achievement in the domestic rock drilling machine industry, increasing the safety, efficiency, and cost-effectiveness for underground mine engineering and tunneling construction operations.
Other Products

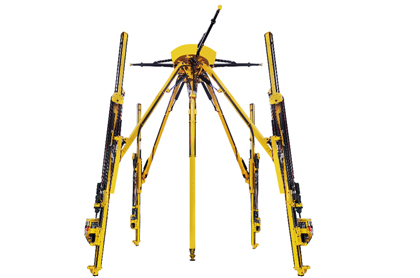

- Shaft Drilling Jumbo, Hydraulic Shaft Jumbo, GYSJZ
The GYSJZ shaft drilling jumbo is a specialized, high-performance drilling machine developed to meet the demands of deep, hard-rock vertical shaft excavation. The drilling machinery is powered by a robust 132kW motor and equipped with three heavy-duty hydraulic drifters, enabling it to handle drilling diameters from 4 to 6 meters.
Read More +
- Shaft Drilling Jumbo, Hydraulic Shaft Jumbo, YSJZ
YSJZ shaft drilling jumbo is a type of rock drilling machinery specially designed for vertical shaft construction in iron ore and non-ferrous metal mines. The shaft jumbo is a great alternative to be used in mining and underground construction projects where other drilling methods couldn't be adopted due to their technical or economic limits.
Read More +
- Shaft Drilling Jumbo, Pneumatic Shaft Jumbo, SJZ
SJZ series vertical shaft drill is a special equipment to drill blastholes for construction of vertical shaft. It suits a wide range of shaft diameters, and features of flexible operation, precise positioning and reliable safety.
Read More +

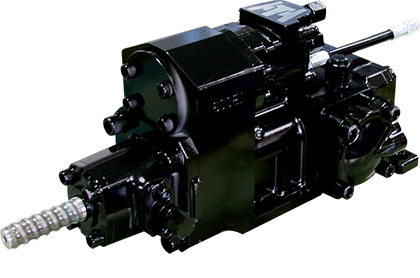

- Hydraulic Drifter, RC600
