Hydraulic Drifter

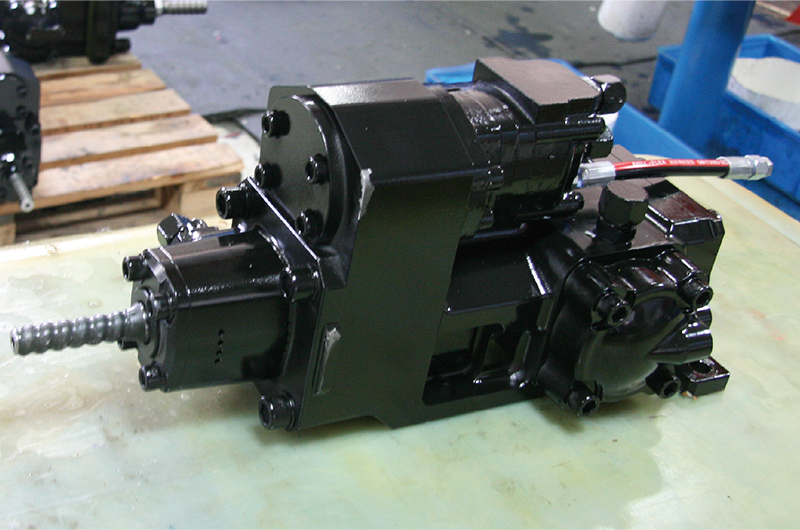

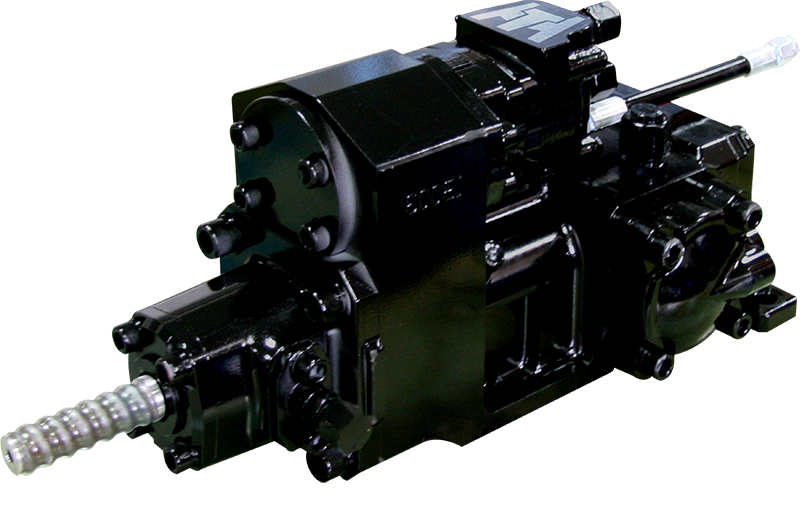

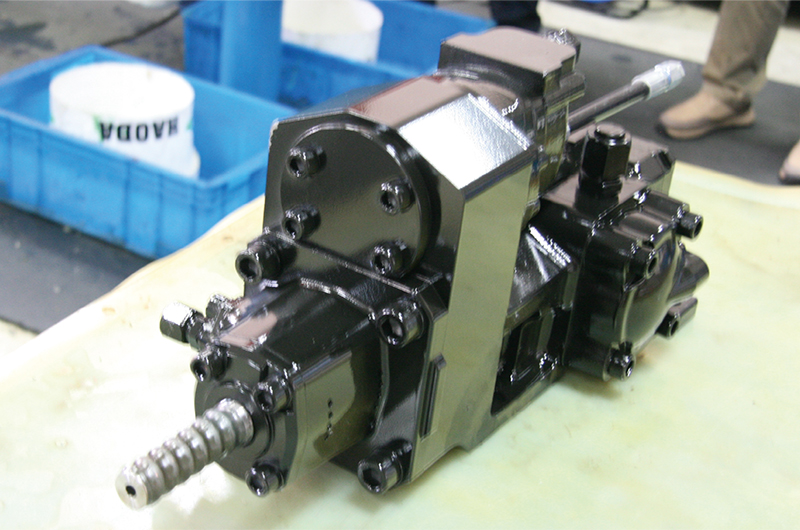

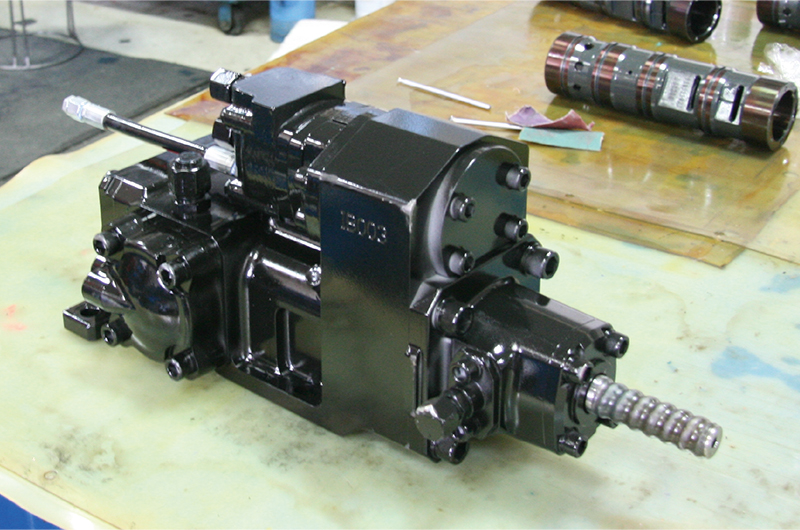

Hydraulic Drifter, RC600

Hydraulic Drifter, RC600
Hydraulic Drifter, RC600 Hydraulic Drifter, RC600 Hydraulic Drifter, RC600 Hydraulic Drifter, RC600

Purpose-built for medium-hard rock formations, the RC600 hydraulic drifter delivers powerful and precise drilling across a wide range of demanding applications. Its robust design and versatile capabilities make it the perfect choice for support drilling in underground mining, anchor bolt installation, highway construction, bridge engineering, and complex building projects. Experience the reliability and power of this hydraulic drifter in your next drilling project. Reach out to our team today and discover how it can transform your operations with efficiency and durability.

Request a Quote
Features
  • Compact and Durable Design Built for heavy-duty performance and long-lasting durability.
  • Stainless Steel Flushing Head Equipped with a corrosion-resistant stainless steel flushing head that includes a backflow prevention mechanism, protecting the gear chamber from wastewater contamination.
  • Modular Architecture Features a modular structure for easy maintenance and reliable operation.
  • Eco-Friendly Lubrication System The tail shank lubrication air is fully recyclable, preventing environmental contamination and promoting worker safety.
Applications
  • Mining support and reinforcement
  • Tunnel construction and drilling
  • Highway and bridge construction
  • General construction projects
Technical Specifications
Performance Parameters Drilling Diameter 28 – 45 mm
Impact Power 6.5 kW
Impact Frequency 85 Hz
Flow Rate 60 L/min
Operating Pressure 120 - 180 bar
Shank Type R20, R22(Female Shank)
R25, R28(Male Shank)
Weight 76 kg
Dimensions Length (without shank) 495 mm
Width 266 mm
Height (Vertical Distance) 166 mm
Height(Horizontal Distance) 133 mm
Rotation Parameters Motor Model OMS 80
Rotation Pressure 210 bar(max)
Torque 360 N.m
Rotation Speed 0 - 550 rpm
Flow Rate 60 L/min
Flushing Flow and Pressure Water Pressure 20 bar(max)
Water Consumption 30 - 50 L/min
Shank Lubrication Air Pressure 2.5 bar
Air Consumption 200 L/min
Lubricant Type Turbine oil 100
Oil Consumption 10 - 15 drops/min
Accumulator Medium Nitrogen(N₂)
High Pressure 50 bar
Low Pressure 4 bar
