Hydraulic Drifter

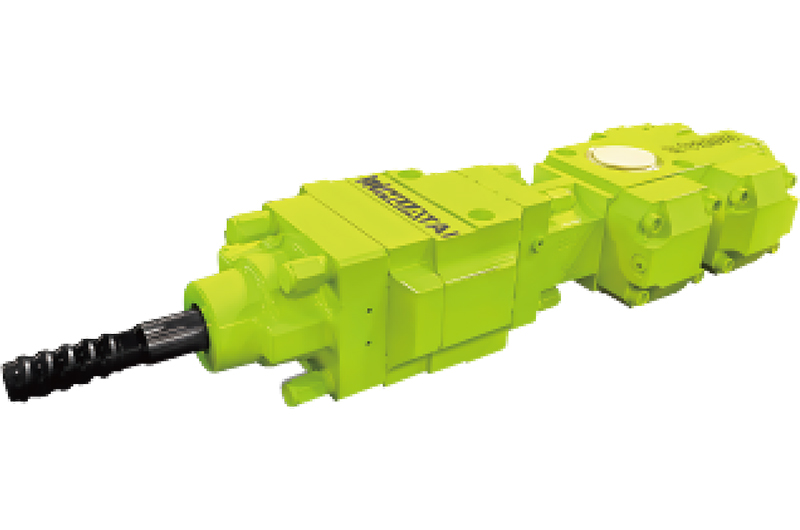

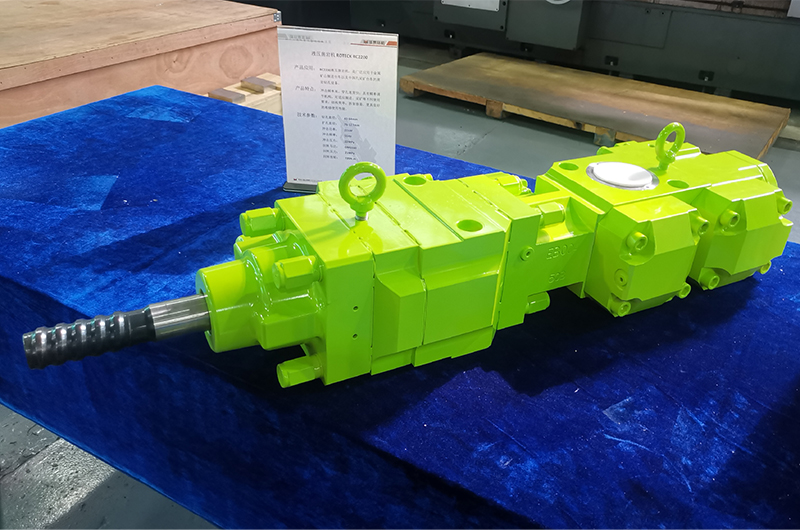

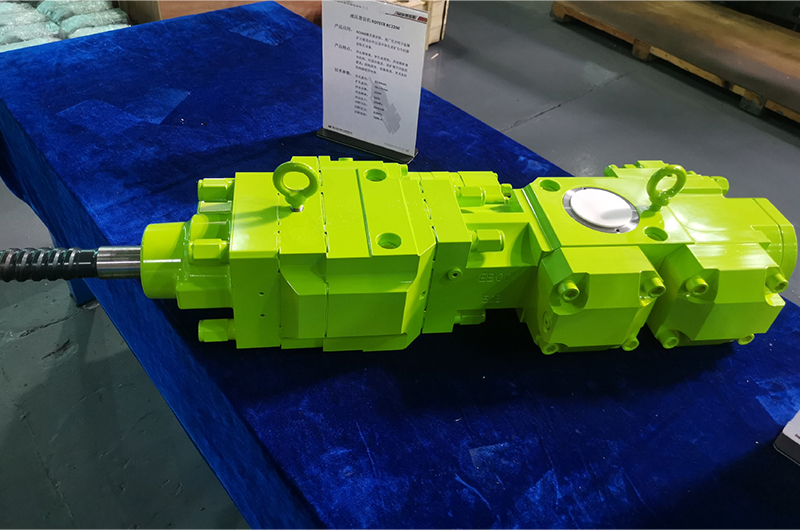

Hydraulic Drifter, RC2200
The RC2200 hydraulic drifter is expertly designed for rock drilling rigs and medium-depth mining operations. Built with high-impact power and a reinforced guide sleeve, it effectively prevents the ingress of water and mud, ensuring maximum reliability even in harsh environments.
Its modular structure allows for easy disassembly and maintenance, significantly reducing downtime and overall maintenance costs. With its rugged construction and efficient design, this hydraulic drifter is the ideal choice for demanding drilling projects where performance and durability are crucial. Power up your drilling operations with the RC2200 hydraulic drifter. Get in touch with us today to experience unmatched durability and reliability in every project.
- High Impact Power Optimized for efficient drilling in medium-depth rock formations.
- Reinforced Guide Sleeve Prevents contamination from water and mud, ensuring smooth operation.
- Low Maintenance Cost Modular design simplifies maintenance, minimizing operational costs.
- Reliable Construction Enhanced durability for long-lasting performance in tough conditions.
- Rock Drilling Rigs
- Medium-Depth Mining Operations
- Tunnel Construction
- Underground Mining Support
- Shaft Drilling
- Infrastructure Projects
| Performance Parameters | Drilling Diameter | 43 - 76 mm | ||
| Impact Power | 21 kW | |||
| Impact Frequence | 55 Hz | |||
| Flow Rate | 120 L/min | |||
| Operating Pressure | 120 - 200 bar | |||
| Shank Type | T38, T45（Male Shank） | |||
| Weight | 225 kg | |||
| Dimensions | Length (without shank) | 1014 mm | ||
| Width | 329 mm | |||
| Height (Vertical Distance) | 90 mm | |||
| Height(Horizontal Distance) | 154 mm | |||
| Rotation Parameters | Motor Model | OMS 125 | OMS160 | OMS200 |
| Rotation Pressure | 210 bar(max) | |||
| Torque | 570 N.m | 720 N.m | 870 N.m | |
| Rotation Speed | 0 - 290 rpm | 0 - 285 rpm | 0 - 235 rpm | |
| Flow Rate | 60 L/min | 75 L/min | 75 L/min | |
| Flushing Flow and Pressure | Water Pressure | 20 bar(max) | ||
| Water Consumption | 40 - 80 L/min | |||
| Shank Lubrication | Air Pressure | 2.5 bar | ||
| Air Consumption | 300 L/min | |||
| Lubricant Type | Turbine oil 100 | |||
| Oil Consumption | 15 drops/min | |||
| Accumulator | Medium | Nitrogen（N₂） | ||
| High Pressure | 50 bar | |||
| Low Pressure | 4 bar | |||
