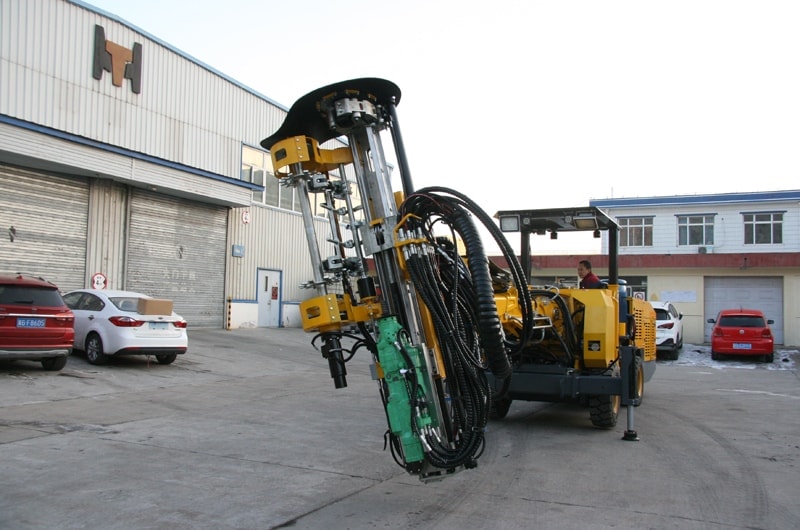

Hydraulic Drilling Jumbo, HT72(for Mining)

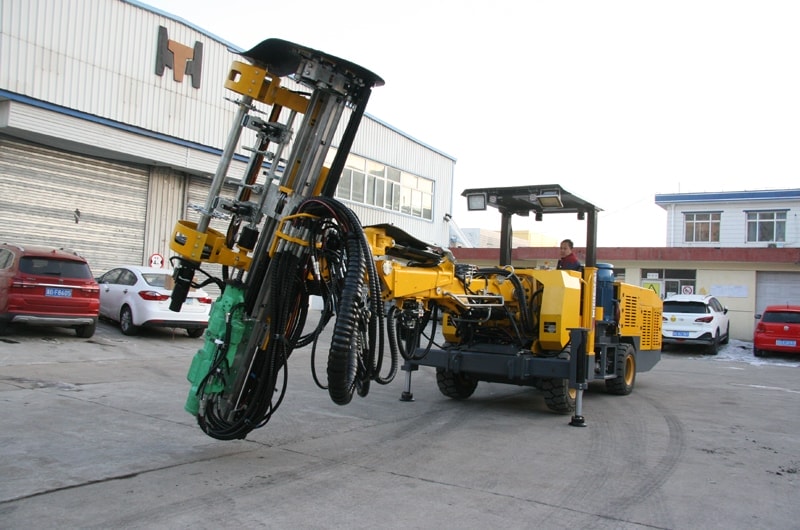

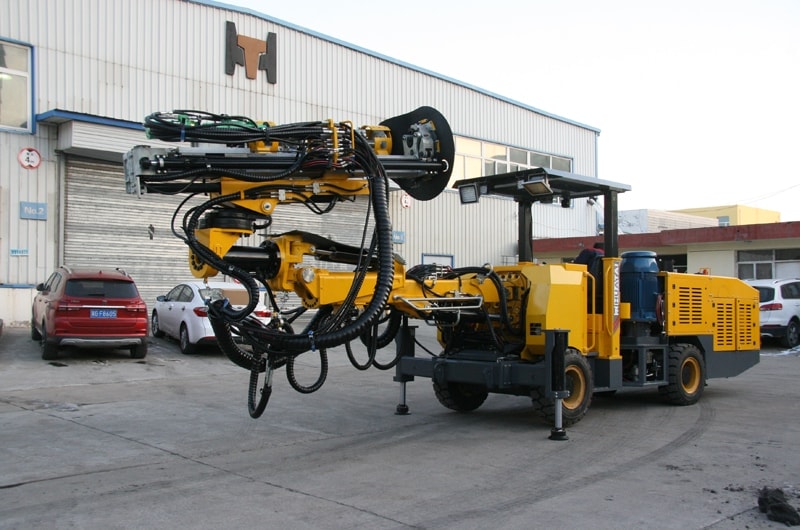

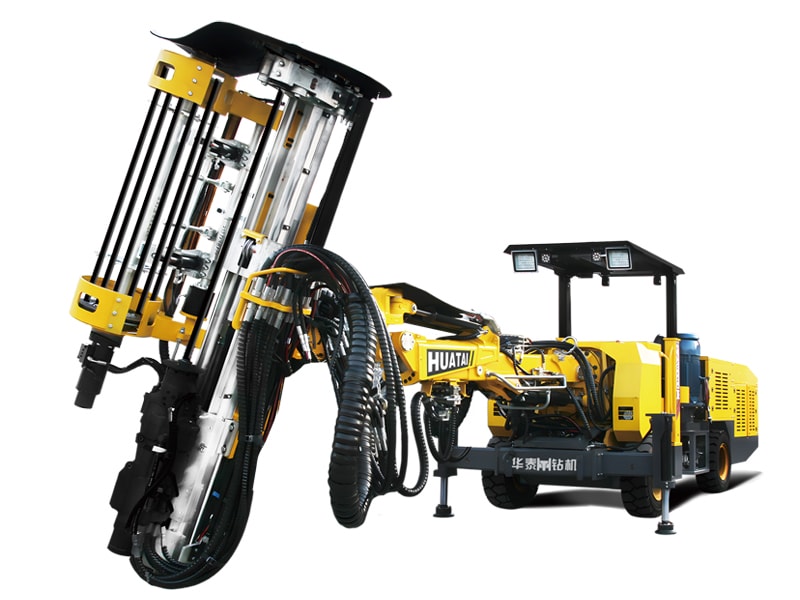

Our HT72 hydraulic drilling jumbo is engineered for high-performance medium- to deep-hole drilling and it is particularly effective in fan-shaped and cluster hole operations. This hydraulic drilling jumbo excels in small cross-section tunnels, offering exceptional maneuverability even in narrow underground environments.
Equipped with a versatile articulated boom that integrates swing and translational motion, the hydraulic drilling jumbo achieves full 180° horizontal and vertical coverage. This allows the jumbo to drill across wide areas from a single position, ideal for complex, multi-angle blast hole drilling.
Designed with operator safety in mind, the hydraulic drilling jumbo features a reinforced canopy to protect against falling rocks, delivering comprehensive on-site protection. It ensures that your crew stays safe while maintaining peak efficiency in demanding mining operations. Transform the way you drill with a solution that expands your reach, protects your team, and keeps your operation moving with precision.
Details
- Precision-Centered Drilling: equipped with a pressure-holding centering system to minimize borehole deviation and maintain drilling accuracy
- Compact Rod Storage System: designed with a space-efficient storage mechanism ideal for mechanized operations in confined tunnels
- Advanced Drilling Functions: includes anti-jamming, pilot hole drilling, and full-power drilling, with feed force linked to impact force to ensure hammering disabled under no-load condition.
- Flexible Rock Drill Options: compatible with RC2200, HC95, YYG22U, and YYG18U rock drills to suit different operational needs

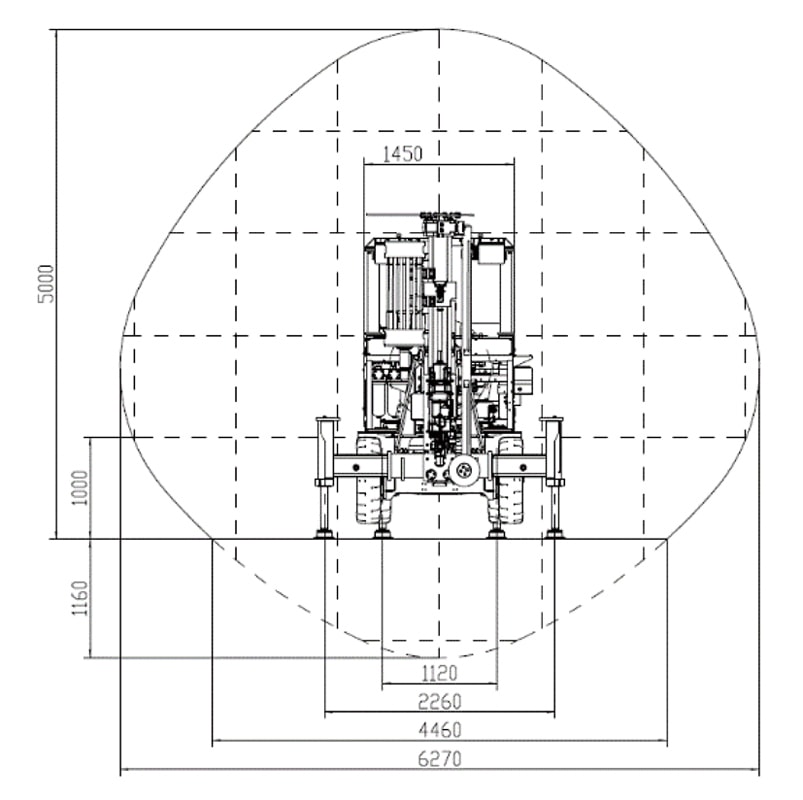

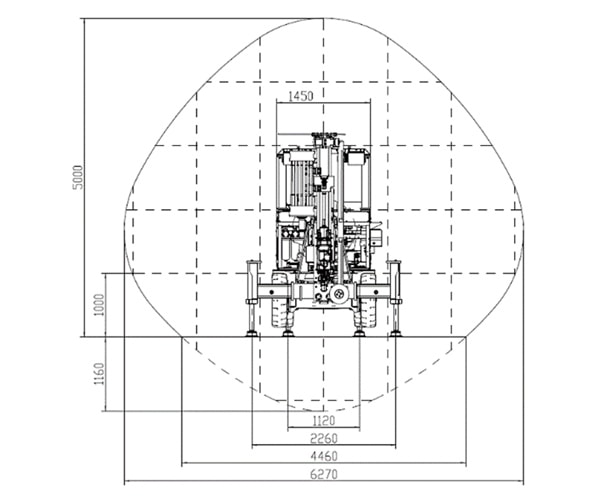

| Drilling rig | Drilling coverage | 4000×4000mm-6100×6100mm | |

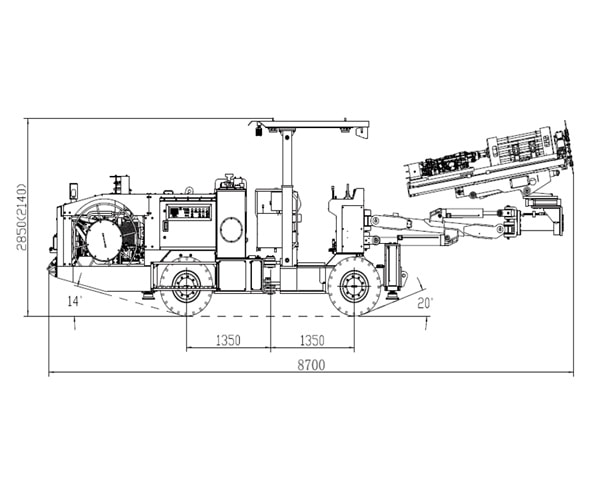

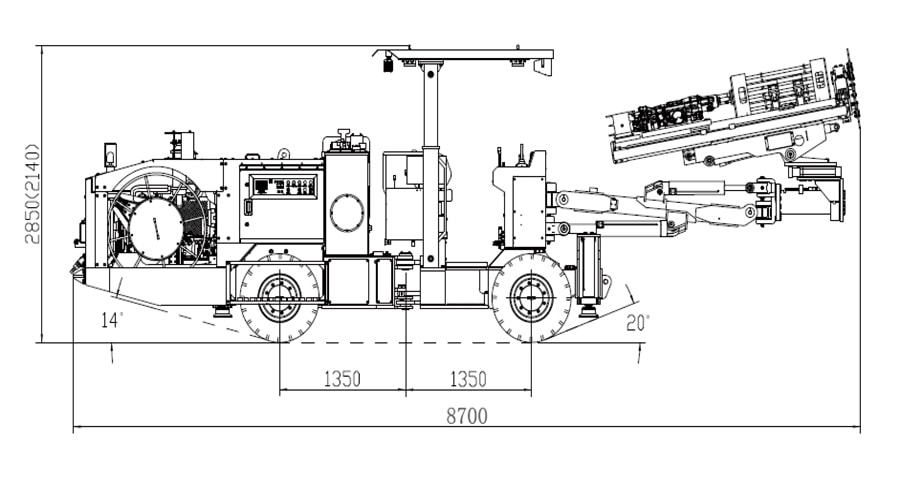

| Dimensions | 8700×1750×2140(2850)mm | ||
| Ground clearance | 320mm | ||

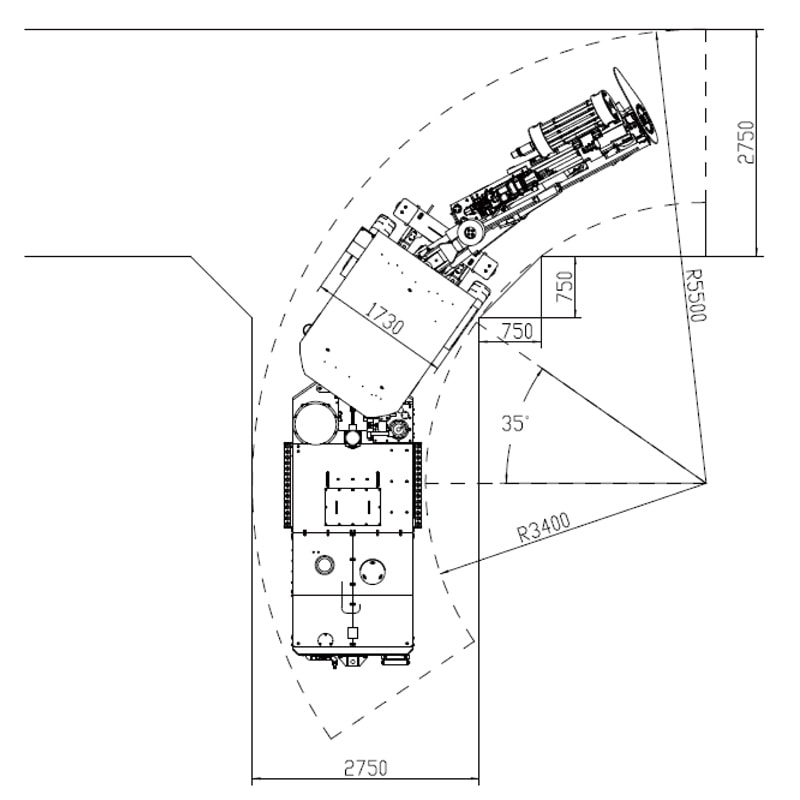

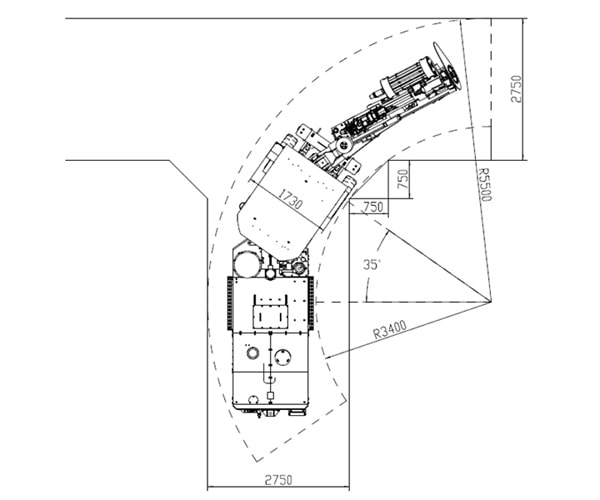

| Min. turning radius | Inside 3400mm Outside 5500mm | ||
| Gradeability | 14° | ||
| Weight | 15000kg | ||
| Rock drill | Model | YYG22U | HC95 |
| Impact power | 22kW | 24kW | |
| Impact frequency | 55Hz | 57Hz | |
| Impact pressure | 180-220bar | 200bar | |
| Rotation system | Independent rotation | Independent rotation | |
| Rotation speed | 0-220r/min | 0-236r/min | |
| Max. rotation torque | 1000Nm | 764Nm | |
| Feed | Total length | 3000mm | |
| Drill steel length | 915mm | ||
| Weight | 650kg | ||
| Feed force | 13kN | ||
| Storage capacity of rods | 13/15 rods | ||
| Max. hole depth | 35000mm | ||
| Boom | Feed compensation | 750mm | |
| Guide shell rotary angle | ±180° | ||
| Guide shell turning angle | ±180° | ||
| Guide shell swing angle | Down 5°, up 95° | ||
| Boom tilt angle | +50°/-30° | ||
| Swing angle | ±35° | ||
| Boom telescopic extension | 1250mm | ||
| Air system | Air compressor model | GCU11 | |
| Air tank capacity | 25L | ||
| Air displacement (8bar) | 1m³/min | ||
| Electrical system | Installation power | 85.5kW | |
| Main motor power | 75kW | ||
| Voltage | 380V (customizable) | ||
| Hydraulic system | Oil tank capacity | 180L | |
| Filtration | 10μm | ||
| Chassis | Engine | Yanmar diesel engine | |
| Rated output power (2200r/min) | 53.7kW | ||
| Torque (1650r/min) | 308Nm | ||
| Diesel tank capacity | 55L | ||
| Steering angle | ±35° | ||
| Emission filter | DOC+DPF | ||
| Cable length | 70m | ||
