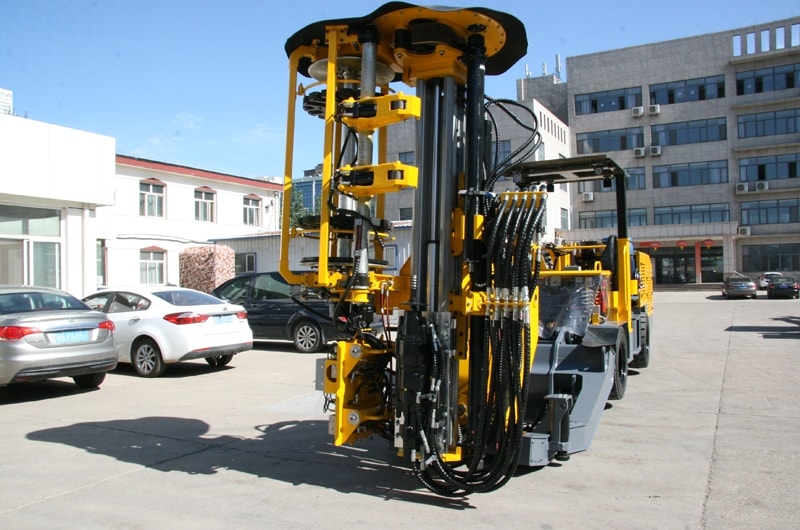

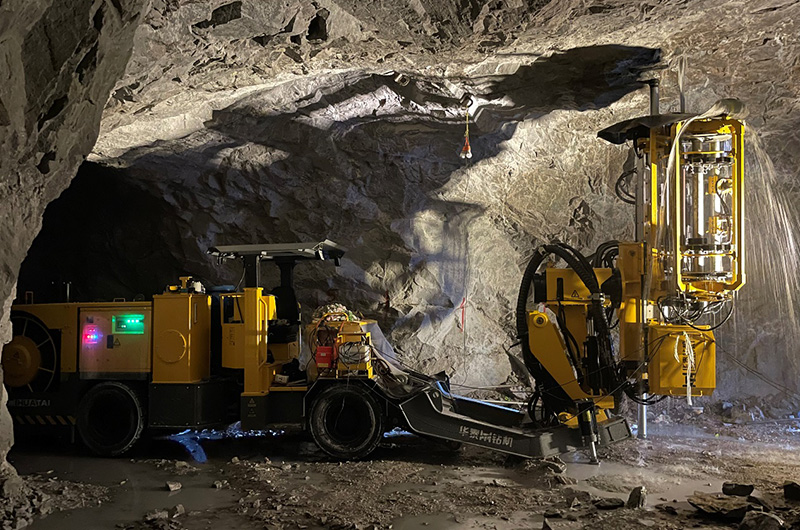

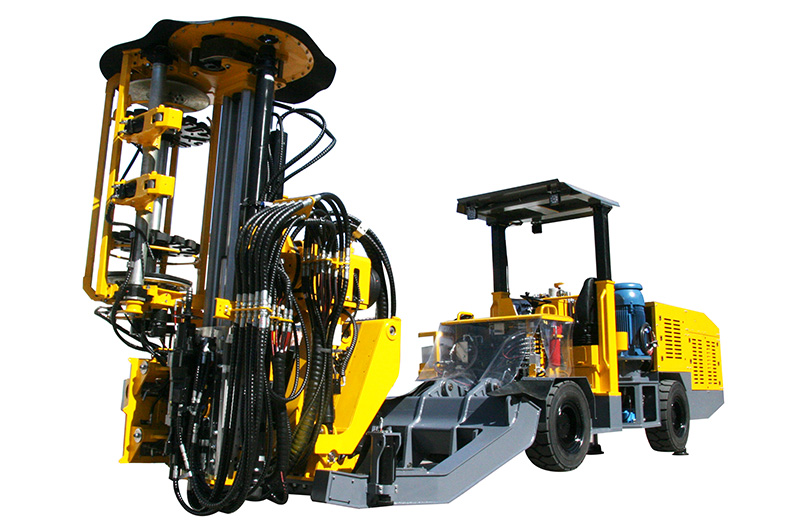

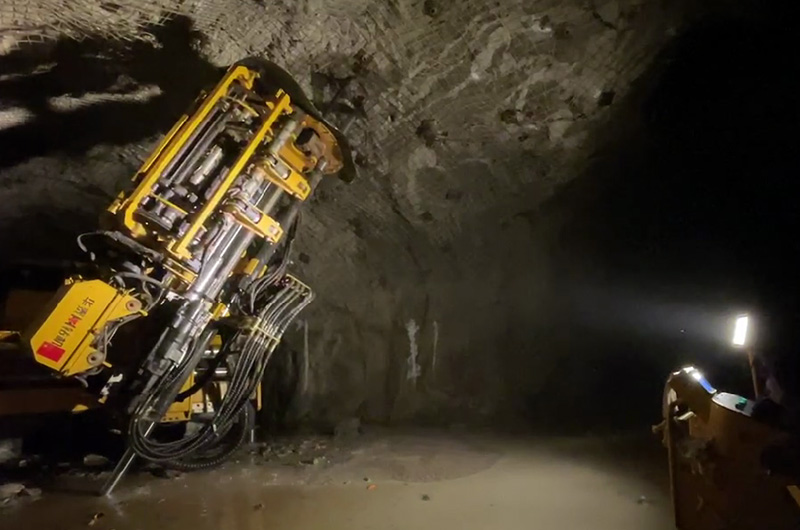

HT72-D hydraulic drilling jumbo features compact design, which is used for small and medium sized mines. With flexible design, this mining equipment can be used for drilling horizontal and fan-shaped holes on vertical and inclined plane in underground mine or tunnels.
The underground drill rig features dual drill bits, high precision drill angle indication system, remotely controlled operation platform, and high performance drifter, which ensures drilling jobs are performed in an efficient, safe and quick manner. Thanks to the high-performance drill bits, the drilling precision can be improved largely.

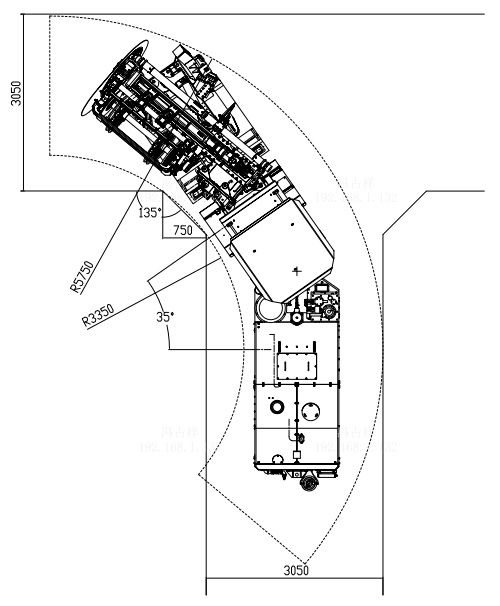

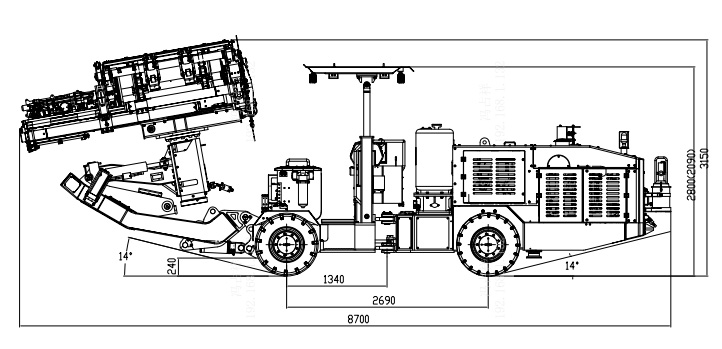

Section range: 3.2×3.2 to 4×4 meters
Details
Standard Configurations

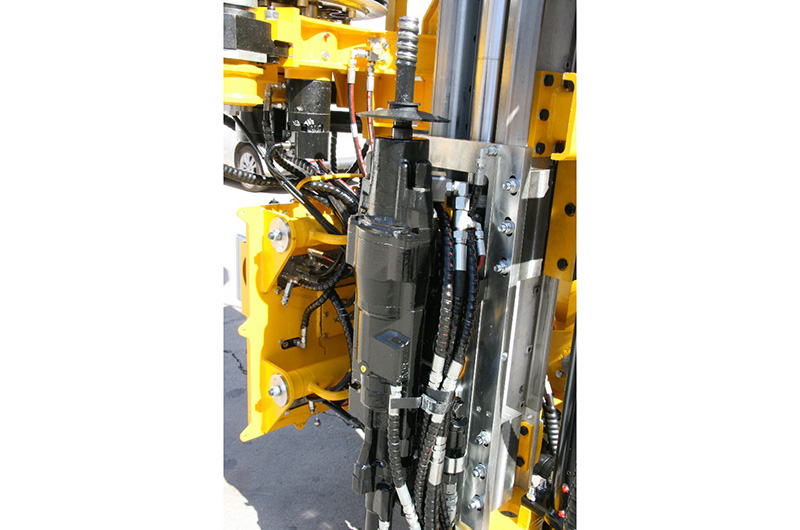

Drifter
The drilling jumbo is equipped with RD22U/RC2200 drifter
Boom
Designed for small section
High rigidity, performance, and angle indication

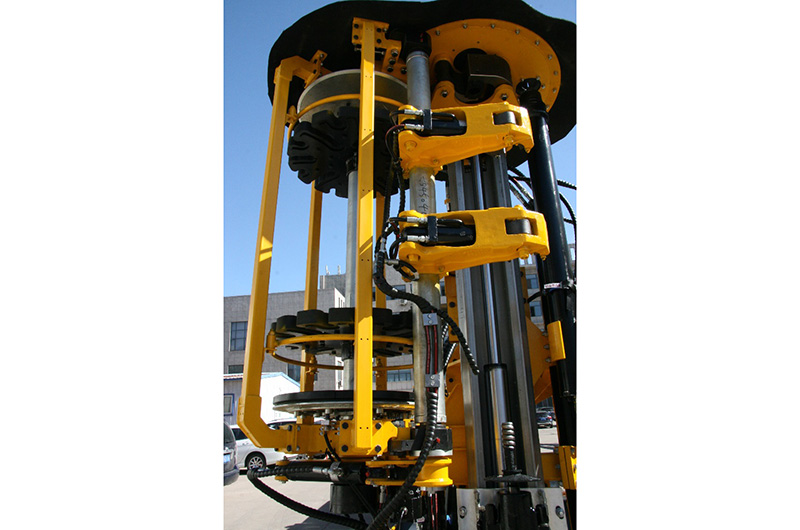

Feed
Feed beam made of high-intensity lightweight aluminum alloy
The feed beam is covered with stainless steel and equipped with PTFE wear-proof sliding block, which helps prolong the service life of the drill.

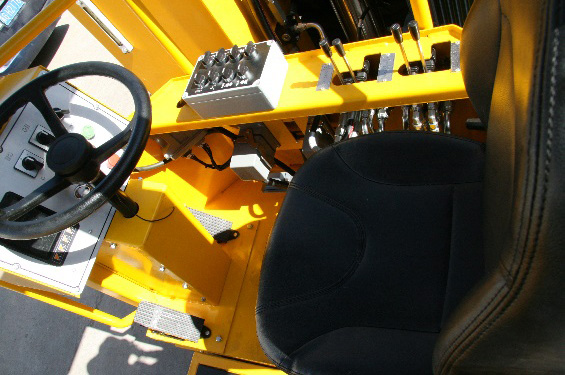

Control system
Equipped with load sensitive system
Programmed with automatic anti-jamming function
Remote control of electro-hydraulic ratio
Proportional control of drilling: when the drill is at full power, the impact power changes proportionally in accordance with different feed pressures.

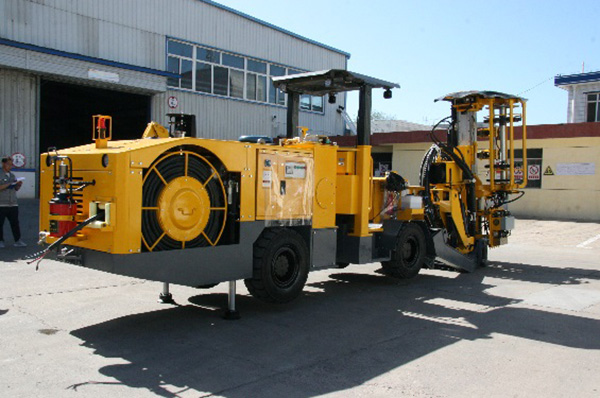

Chassis
Four-wheel drive
Equipped with four-cylinder three-cycle diesel engine of Yanmar
Four hydraulic leveling cylinders for stabilizing the drilling jumbo
