Underground Mining Equipment

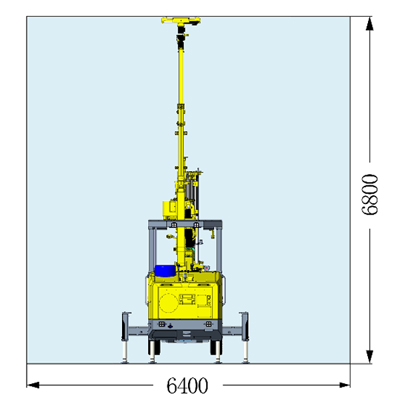

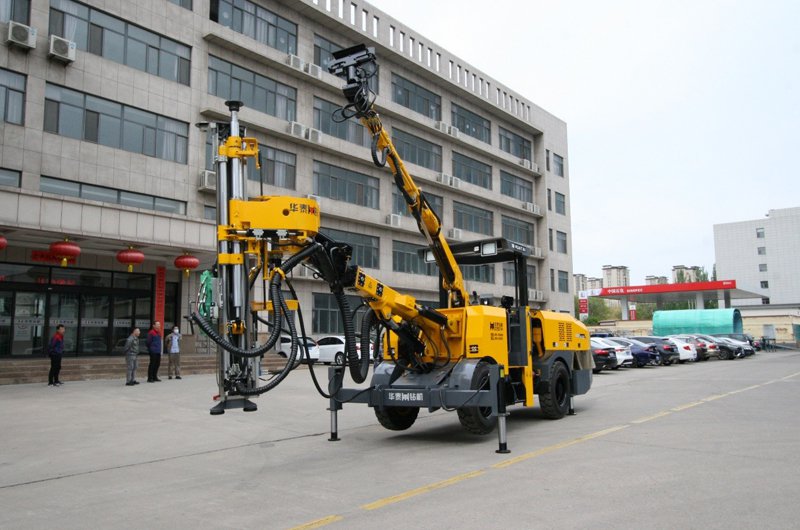

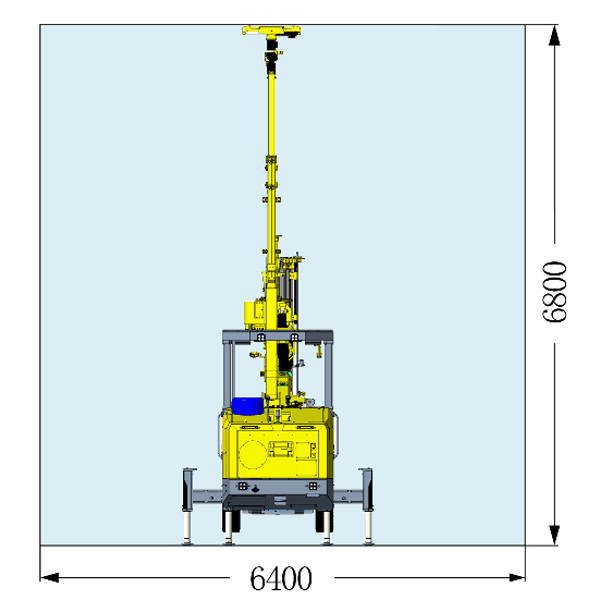

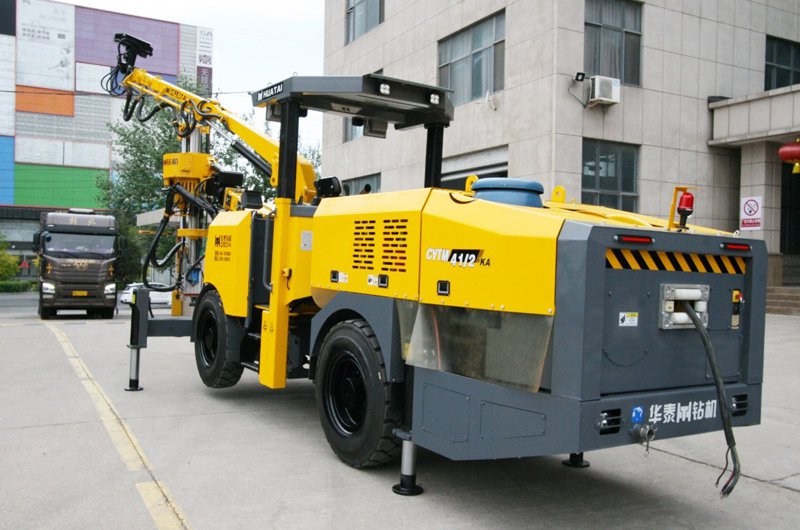

Two-Boom Hydraulic Bolting Jumbo, HT91/2

Two-Boom Hydraulic Bolting Jumbo, HT91/2
Two-Boom Hydraulic Bolting Jumbo, HT91/2 Two-Boom Hydraulic Bolting Jumbo, HT91/2 Two-Boom Hydraulic Bolting Jumbo, HT91/2 Two-Boom Hydraulic Bolting Jumbo, HT91/2
Request a Quote

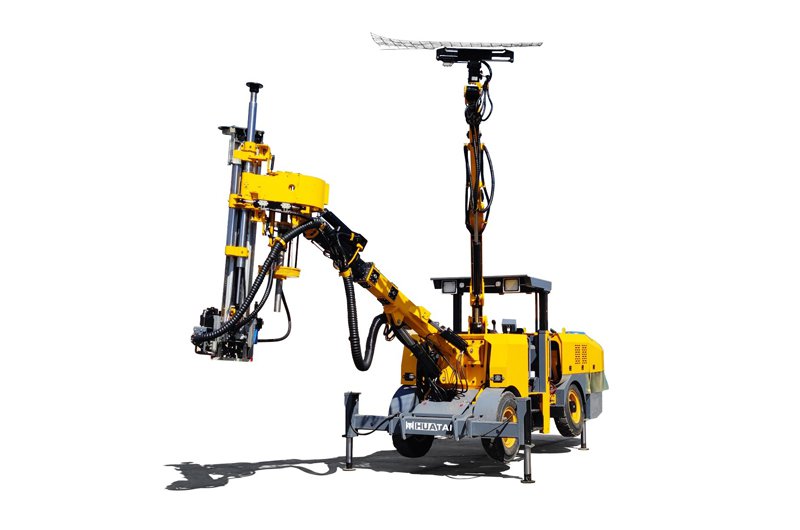

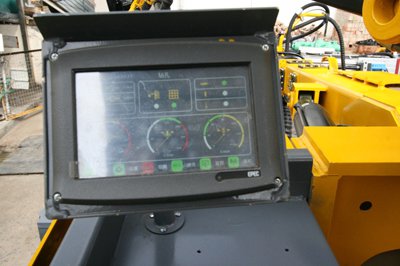

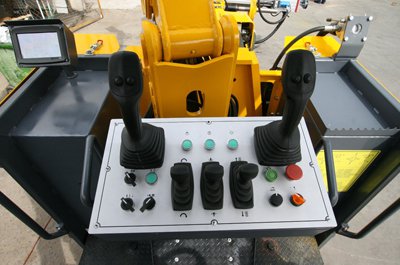

One of the most attractive features of the hydraulic drilling jumbo for tunneling is its double-boom design, making it suitable for a large drilling cross section area. The tunneling jumbo has two drive methods, single-power and dual power, giving it a wider range of efficiency and power options. Equipped with a hydraulic drilling system, the underground tunneling machinery is extremely reliable and durable, making it the preferred choice by many companies involved in the construction and drilling of mines, tunnels and more.

Details
  • Two-Boom Hydraulic Bolting Jumbo, HT91/2
  • Two-Boom Hydraulic Bolting Jumbo, HT91/2
  • Two-Boom Hydraulic Bolting Jumbo, HT91/2
Standard Configurations
  • Rock drill: available with RC1200 or HC25
  • Anti-jamming function
  • Boom: universal telescopic boom
  • Drifter
  • Undercarriage: four-wheel drive, Cummins three-stage diesel engine

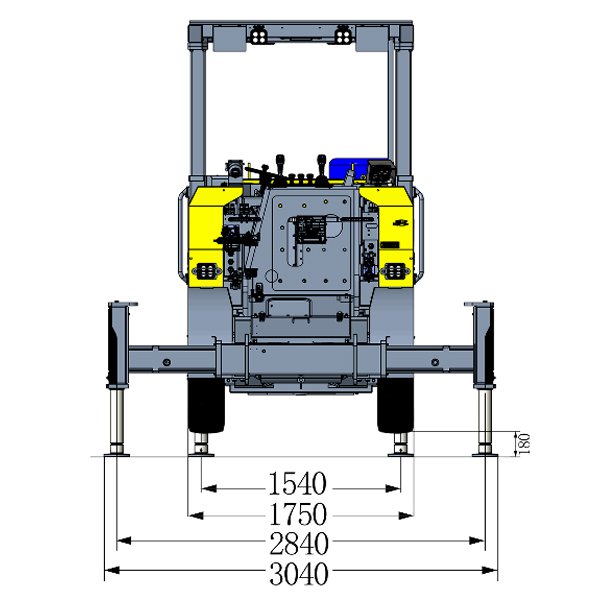

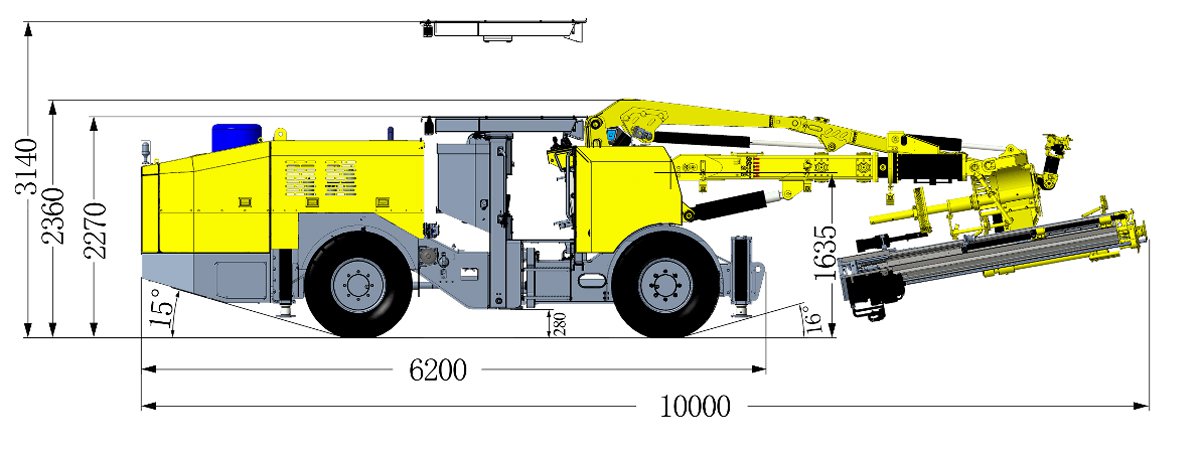

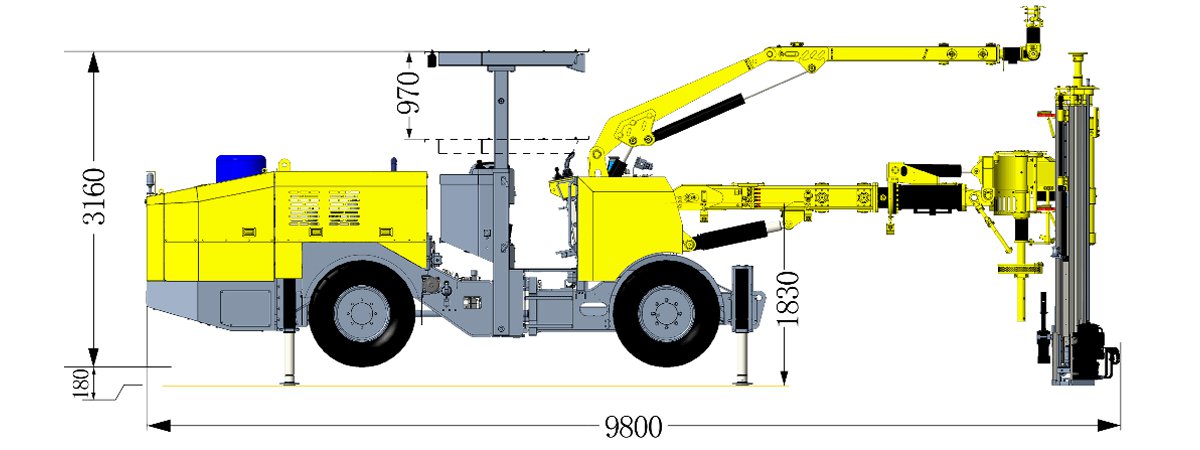

General
Width 1750 mm
Height (operator roof lowered) 2270 mm
Height (operator roof elevated) 3140 mm
Total length 10000 mm
Ground clearance 280 mm
Weight 15000±500 kg
Rock drill
Rock drill RC1200 HC25
Impact power 14kW 8kW
Impact pressure 180bar(max) 150bar(max)
Impact frequency 100Hz 65Hz
Slewing unit independent slewing
Slewing speed 430 r/min 300 r/min
Slewing torque 390N·m 401 N·m
Rod type B28 B25
Hole diameter ⌀32- ⌀43 ⌀32- ⌀43
Length 572mm 708mm
Width 326mm 200mm
Height 180mm 192mm
Weight 126kg 72kg
Shank type R32 R32
Drifter (customized)
Type RC1200 HC25
Total length mm 3070 3200
Rod length mm 2475 2475
Split bolt mm 2000 2000
Resin grouted bolt mm 2200 2200
Hole depth mm 2280 2280
Weight kg 500 450
Feed force kN 10
Working pressure Pa ≤10Mpa
Rock bolt
  • Bolt type: split bolt / resin grouted bolt
  • Bolt QTY.: 10 (size≤150mm)
  • Bolt length: 1500~2500mm

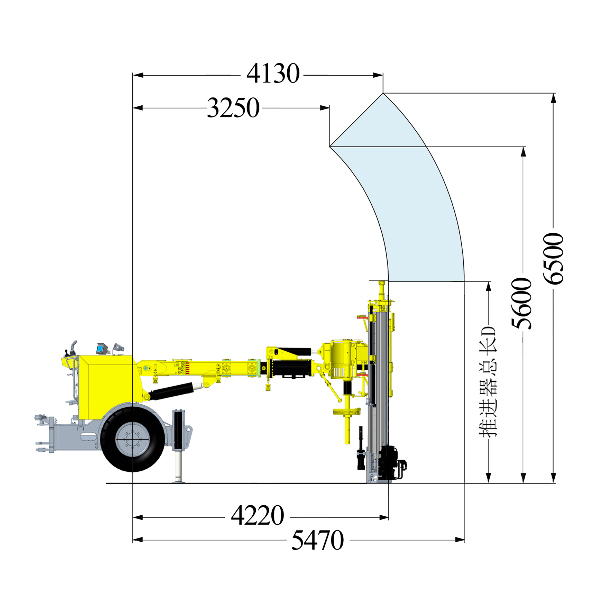

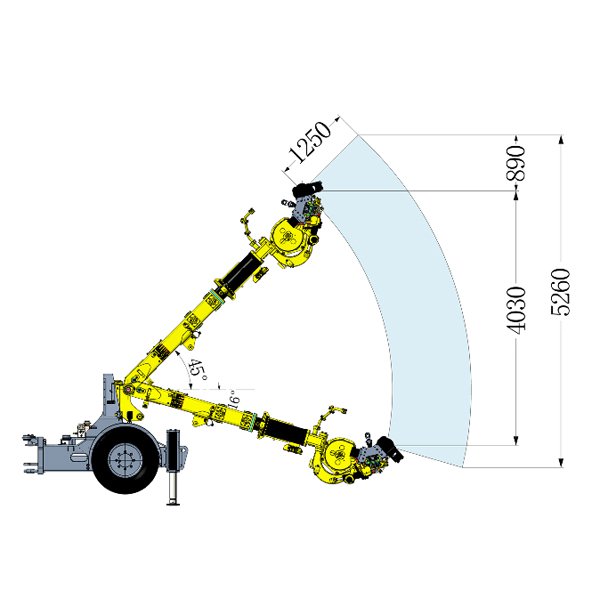

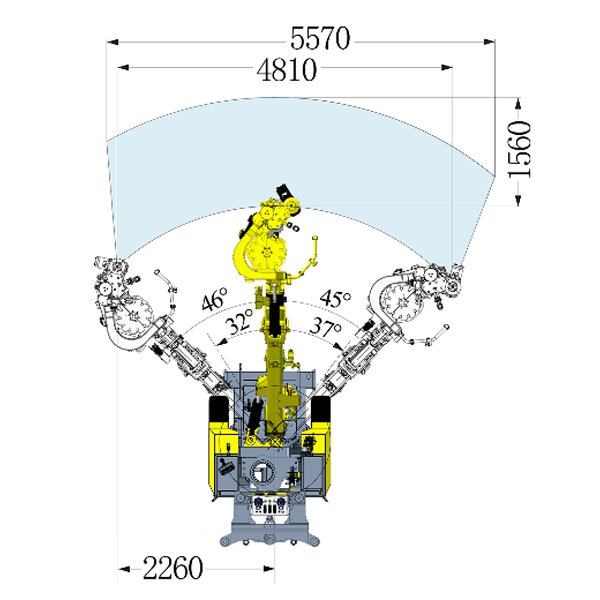

Boom
  • Tilt/lift angle: +45°/-16°
  • Swing angle: 46° (left), 45° (right)
  • Retractable length: 1250mm
  • Feed extension: 480mm
  • Rollover angle of drifter: ±180°
  • Tilt/lift angle of drifter: +80°/-25°
  • Weight: 1200kg
Air supply system
  • Air compressor
  • Capacity (8bar): 0.7m³/min
  • Air tank volume: 60L
  • Air pressure monitoring
Water supply system
  • Water pump: CDL2-15
  • Max. flow (12bar): 2m³/h
  • Min. water inlet pressure: 2 bar
  • Water pressure monitoring
Electrical system
Installed power 64kW
Main motor power 55kW
Voltage 380V (customized)
Frequency 50Hz
Cable reel diameter 1080mm
Thermal overload protection for motor
Impact timer
Power distribution cabinet with digital voltage and ammeter
Phase sequence indicator
Battery
Hydraulic system
  • Pump displacement (impact/slewing): 100cc/32cc
  • Max. oil tank capacity: 200L
  • Filter efficiency: 10μm
  • Hydraulic oil level sensor
  • Manual fuel pump
  • Oil temperature sensor
  • Water cooler
Undercarriage
  • Cummins three-stage diesel engine
  • Power (2400r/min): 74kW
  • Torque (1600r/min): 330Nm
  • Steering angle: ±35°
  • Rear axle swing angle: 8°
  • Diesel tank capacity: 54L
  • Exhaust gas purification: three-way catalyst
  • Battery: 24V, 2 x 120Ah
  • Front work light: 4x40W
  • Rear work light: 4x40W
  • Tyre size: 10.00-20
  • Gradability: 16°
  • Front support leg: 2
  • Rear support leg: 2
  • Four-wheel drive
  • Hydraulic steering system
  • Service brake, parking brake
  • Fire suppression
  • Warning lights with horn
Cables
Type Cross section mm2 Diameter mm Length m
MC-0.38/0.66 3x35+1x10 40 70
Two-Boom Hydraulic Bolting Jumbo, HT91/2
Two-Boom Hydraulic Bolting Jumbo, HT91/2
Two-Boom Hydraulic Bolting Jumbo, HT91/2
Two-Boom Hydraulic Bolting Jumbo, HT91/2
Two-Boom Hydraulic Bolting Jumbo, HT91/2
Two-Boom Hydraulic Bolting Jumbo, HT91/2
Two-Boom Hydraulic Bolting Jumbo, HT91/2
Two-Boom Hydraulic Bolting Jumbo, HT91/2
