Underground Mining Equipment

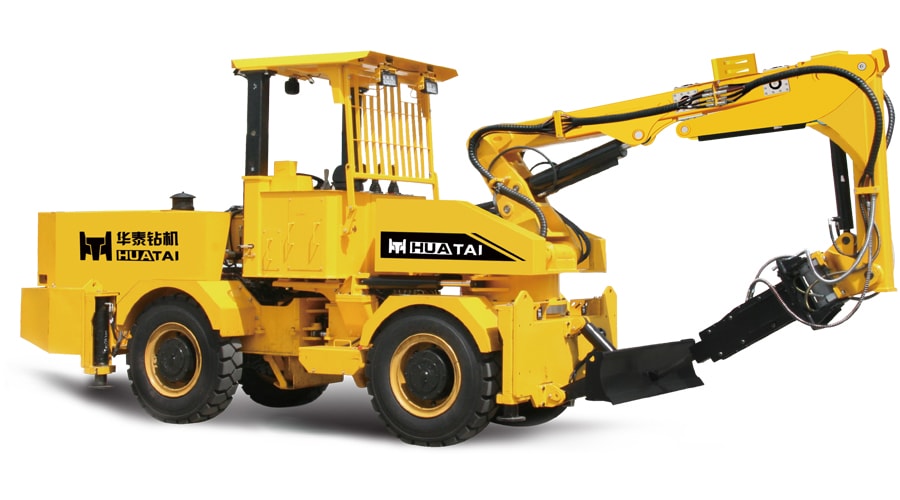

Underground Scaler, HT60
The HT60 underground scaler is a high-performance wheeled machine designed for scaling operations in tunnels, drifts, and underground chambers across metal mines and various subsurface engineering projects.
This scaler features a foldable working arm with a hydraulic hammer equipped with a rotary cylinder and dual extendable arms, enabling full-range coverage of the face, roof, sidewalls, and floor. Its load-sensing hydraulic system ensures energy efficiency, smooth operation, and accurate positioning.
Built with a compact structure and strong mobility, this underground scaler boasts a tight turning radius and powerful climbing ability, making it an ideal choice for improving both the efficiency and safety of underground scaling tasks.
Take control of your underground scaling with a solution that delivers complete surface coverage, intelligent control, and reliable performance where space and safety are critical.
Technical Specifications

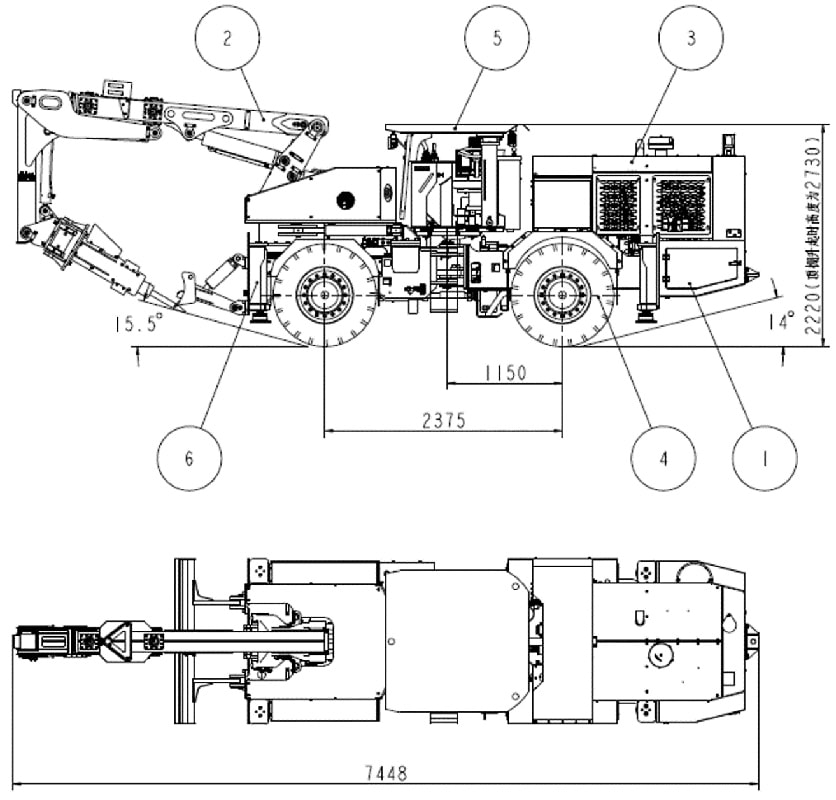

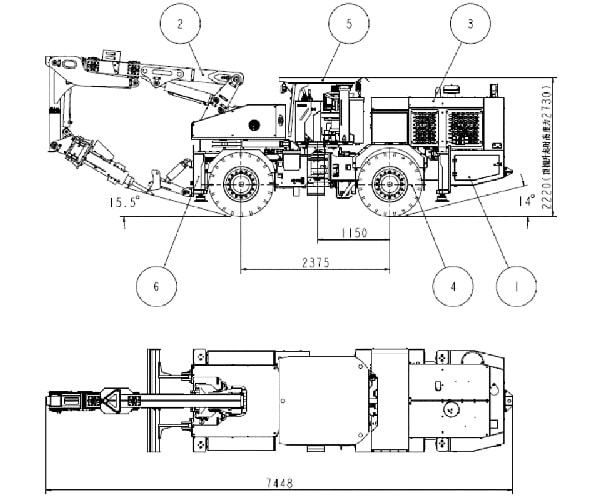

| General | Dimensions (transportation) | 7450×1650×2300mm |
| Wheelbase | 2375mm | |
| Min. ground clearance | ≥290mm | |
| Frame swing angle | ±7° | |
| Max. steering angle | ±35° | |
| Weight | 11000kg | |
| Travel speed | 0-18km/h | |
| Roof (lifting height) | 510mm | |
| Roof (tilt angle) | - | |
| Impact energy | 700J (optional) | |
| Drill rod diameter | Ø75 (optional) | |
| Impact frequency | 8-15Hz | |
| Working device | Max. extension length | 8200mm |

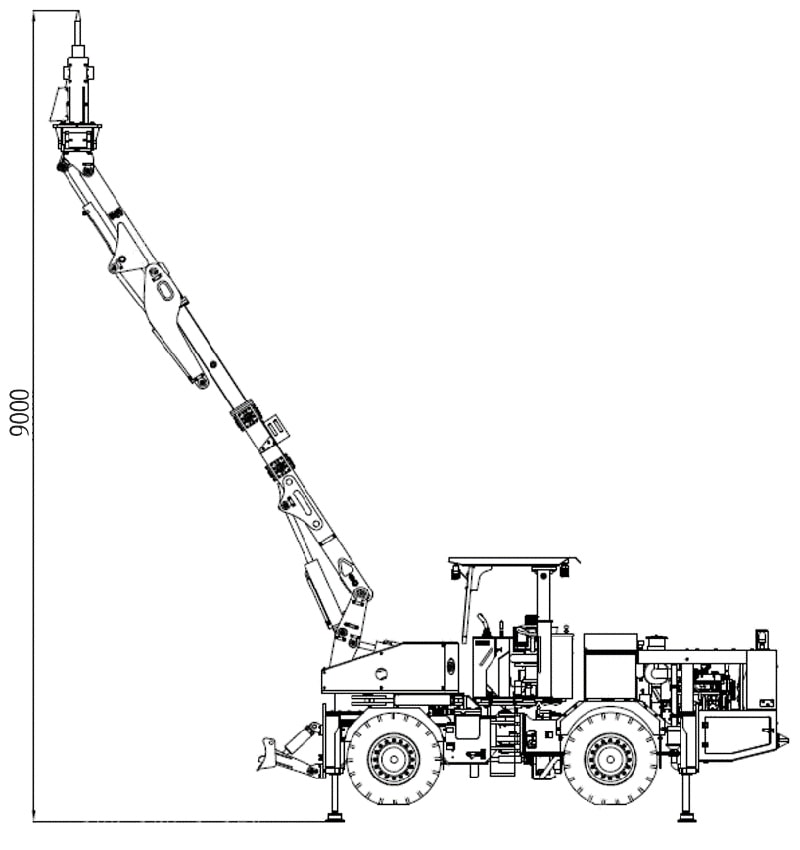

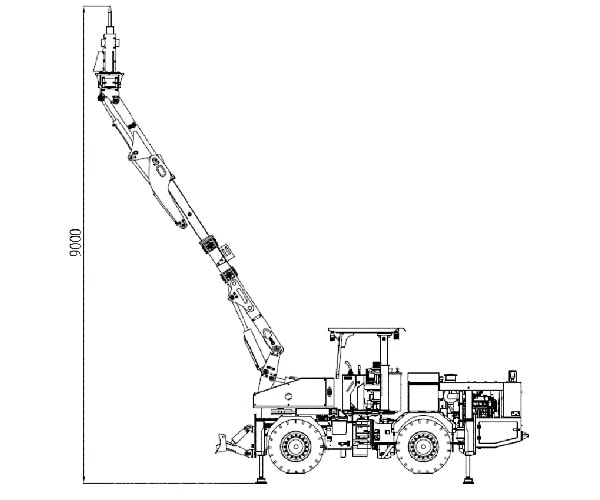

| Max. scaling height | 9000mm | |
| Hydraulic hammer swing angle | ±90° | |
| Boom swing angle | ±30° | |
| Gradability | 14° | |

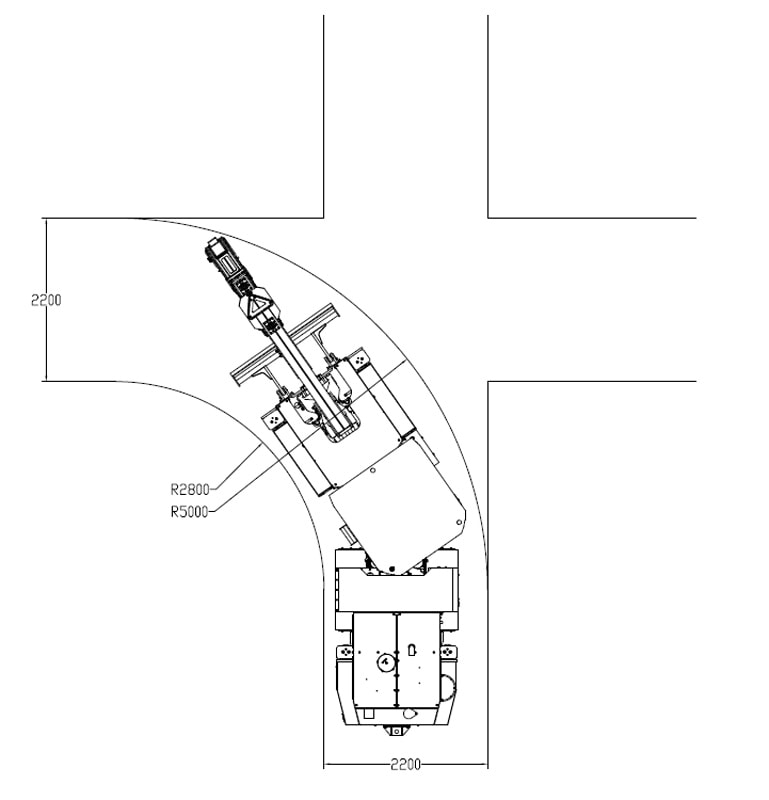

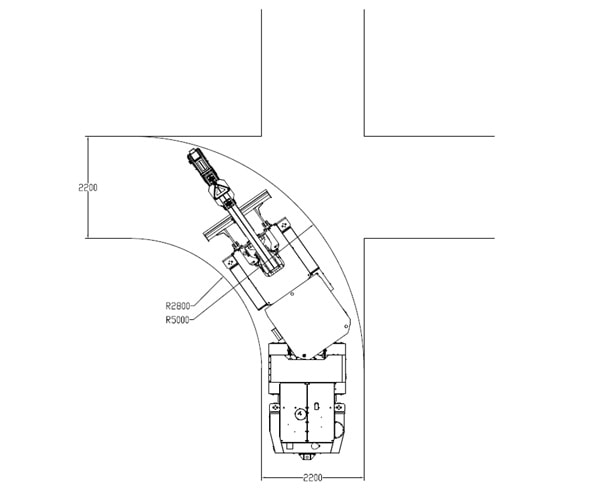

| Turning radius | Inside 2800mm Outside 5000mm | |
| Power system | Rated power | 88.3/2400kW/r/min |
| Max. torque | 498/(1400-1600)Nm/r/min | |
| Emission standard | China IV Emission Standard |
- Certified Safety and Visibility: features an ergonomic FOPS certified cab with an HVAC system for excellent operator protection, comfort, and visibility; a front rock guard and manually adjustable roof lights enhance underground safety and awareness
- Full-Range Scaling Capability: foldable working arm allows precise operation across the face, roof, sidewalls, and floor for complete coverage
- Efficient Dust Control: equipped with a high-frequency low-impact hydraulic hammer and a mist spray system to effectively suppress dust during scaling
- Agile Chassis and Strong Mobility: articulated frame with rubber tires provides stable variable-speed movement, tight turning radius, and strong climbing ability ideal for frequent repositioning in tight spaces
- Robust Power and Low Emissions: powered by a diesel engine with hydro-mechanical transmission for quick, reliable mobility; strong performance with low emissions compliant with China Stage IV standards
