Hydraulic Drilling Jumbos, CYTJ45D (for Tunelling and Cavern Excavation)

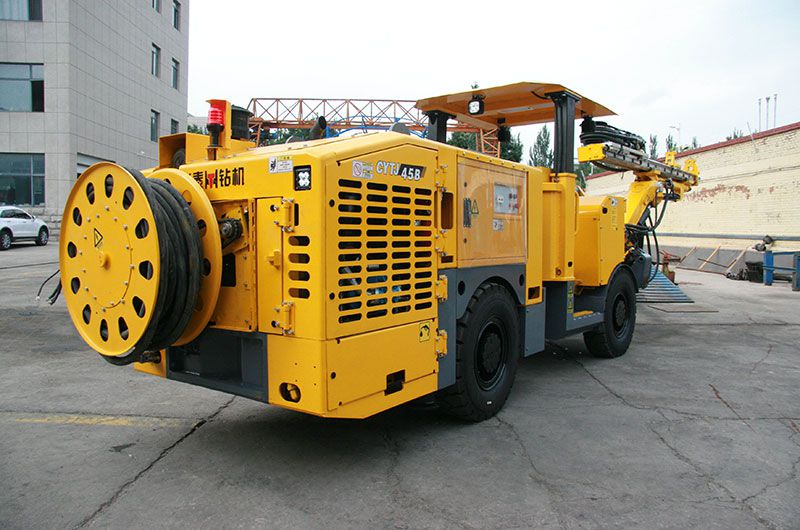

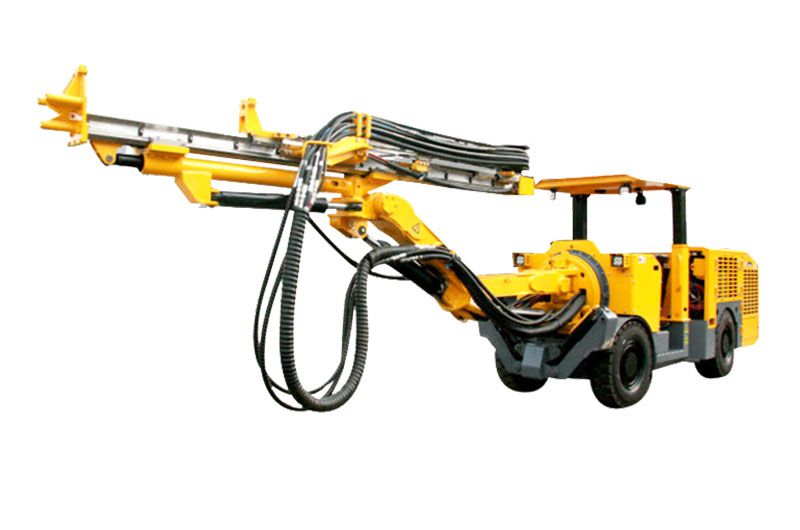

CYTJ45D hydraulic drilling jumbo has been engineered for various mines and small sized drifts & tunnels, with drilling coverage range of 2000x2000-2800x2800mm (WxL).
The drilling machinery comes with fully hydraulic rock drill system and anti-jamming function, allowing for quick drilling speed with low consumption. The drilling jumbo is featured by compact structure and great mobility. In addition, large quantities of dust will be produced during drilling. Huatai adopts efficient dust control measure. The water is used for hole flushing during rock drilling, minizing dust generation. This provides a comfortable and safe working environment.
- Drifter RC1200/14U

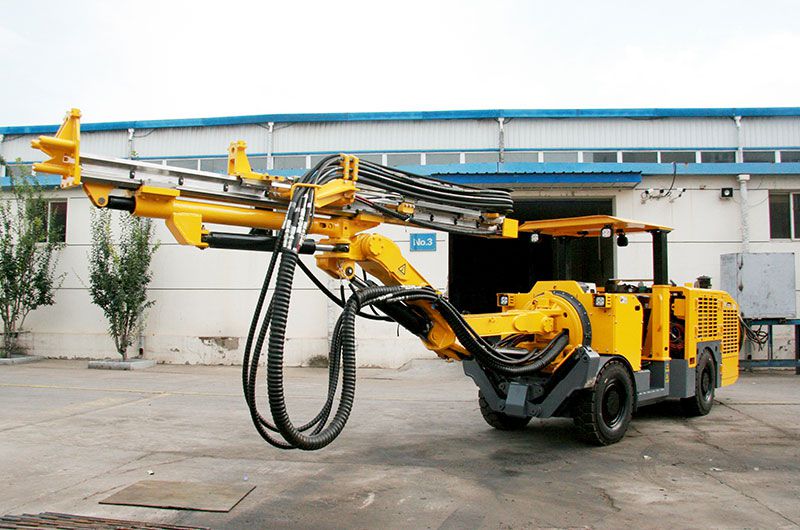

- Boom specially designed for small size cross section
- Anti-jamming function
- Chassis with Yuchai 4-cylinder diesel engine
- Feed
- Control system
| Overall dimensions (L×W×H) |
9000×1380×1770（2280）mm |

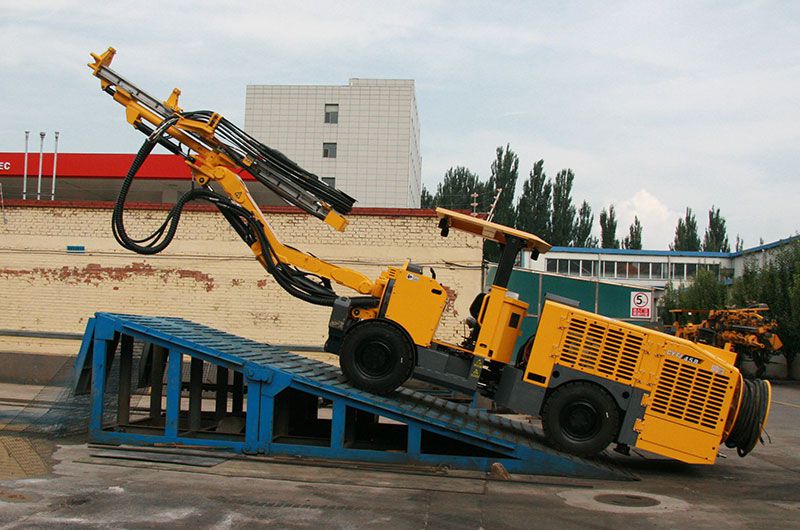

| Drifter | RC1200, 14U |
| Power (drifter) | 14 kW / 14 kW |
| Total length (feed) | 4087 / 4820 mm |
| Drill rod length | 3090 / 3090 mm |
| Rod type | R28-B28-R32 / R32-B35-R38 |
| Hole depth | 2770 / 2770 mm |
| Min. hole diameter | ⌀ 43 mm / 45 mm |
| Feed force | 13 / 13 kN |
| Boom extension | 1250 mm |
| Boom (lift/tilt angle) | 60° |
| Boom swing angle | ±35° |
| Main motor power | 55 kW |
| Rated voltage | 380V (customized) |
| Gradeability | 14° |
| Overall weight | 10.3 T |
| Cable length | 70 m |

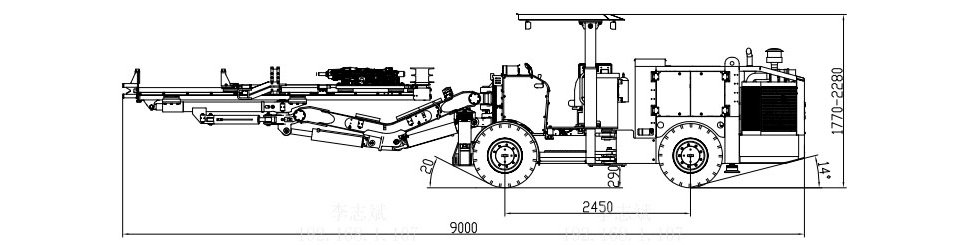

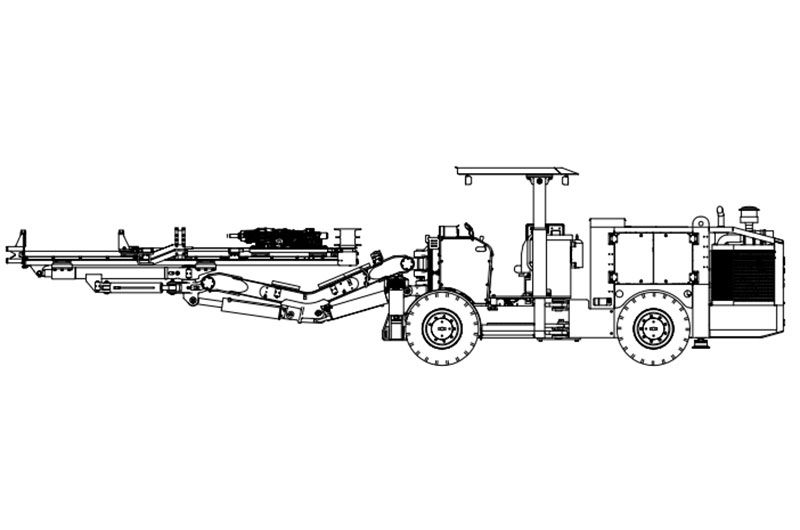

Outside Dimensions of Jombo Drill with 3090 Feed - Side View

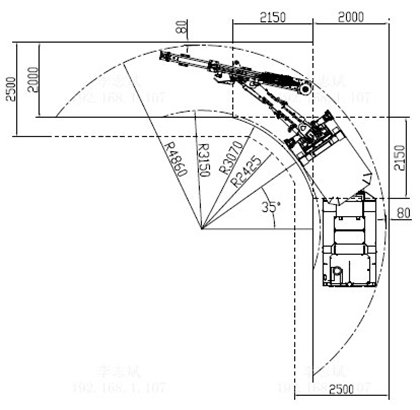

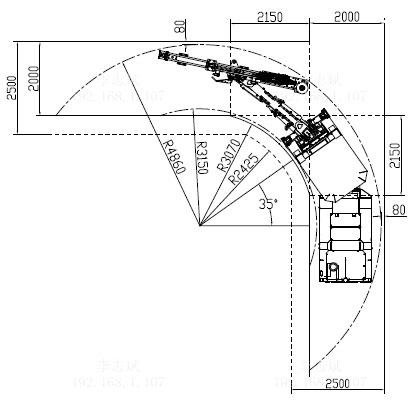

Turning Radius
Cross Section
