Underground Mining Equipment

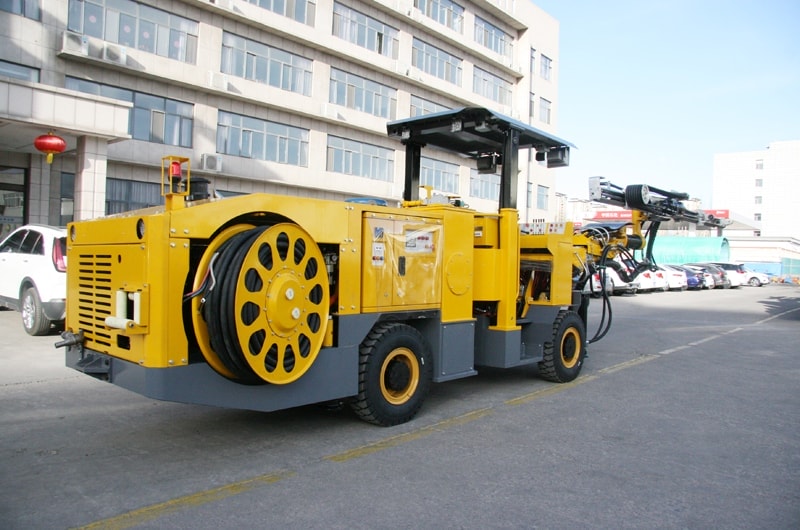

Hydraulic Drilling Jumbos, HT82 (for Tunneling)

Hydraulic Drilling Jumbos, HT82
Hydraulic Drilling Jumbos, HT82 Hydraulic Drilling Jumbos, HT82 Hydraulic Drilling Jumbos, HT82 Hydraulic Drilling Jumbos, HT82
Request a Quote

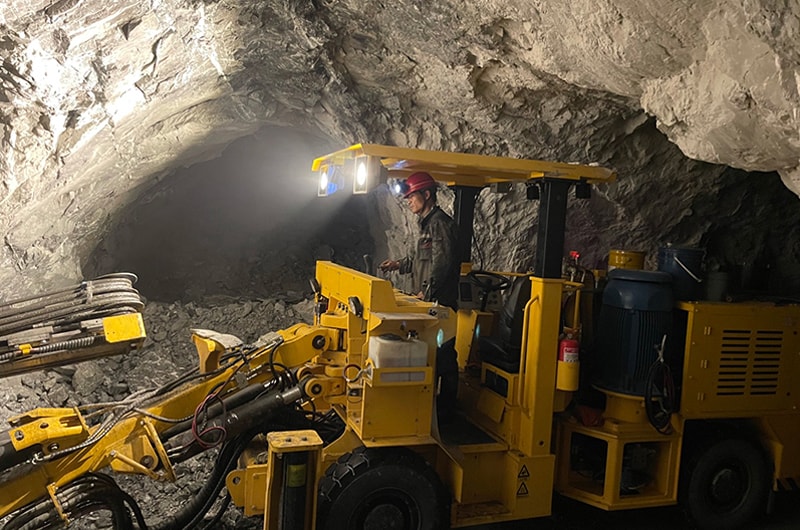

Our hydraulic drilling jumbo is widely utilized in small to medium-sized underground metal mines, hydropower projects, highway/railway tunnels, and chemical industry applications. With exceptional rock adaptability (handling Protodyakonov hardness levels of f=6-16 or higher), this versatile machine operates efficiently in tunnels as narrow as 3.3 meters wide.

Key Features Include:

  • 360° bi-directional (horizontal/vertical) rotation capability of the feed
  • Dual functionality for both tunnel development and hole drilling
Standard Configurations

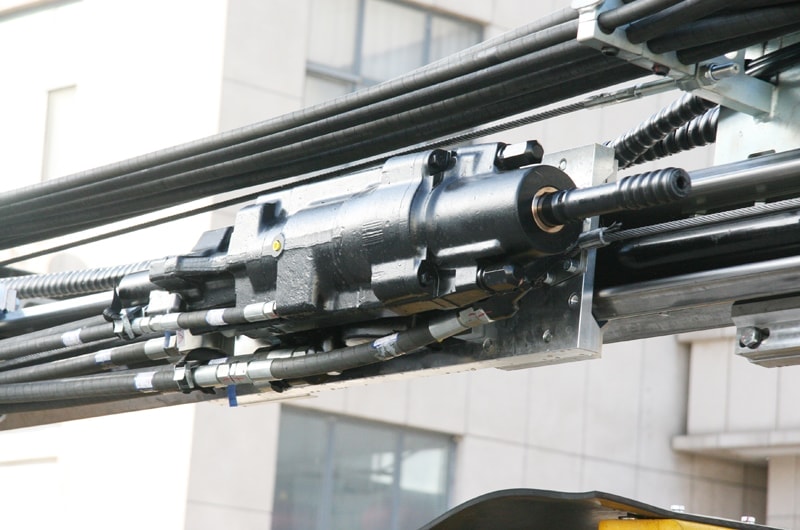

  • Drifter
  • Boom with double triangle floating support system
  • Anti-jamming function
  • Chassis with Yanmar 4-cylinder diesel engine

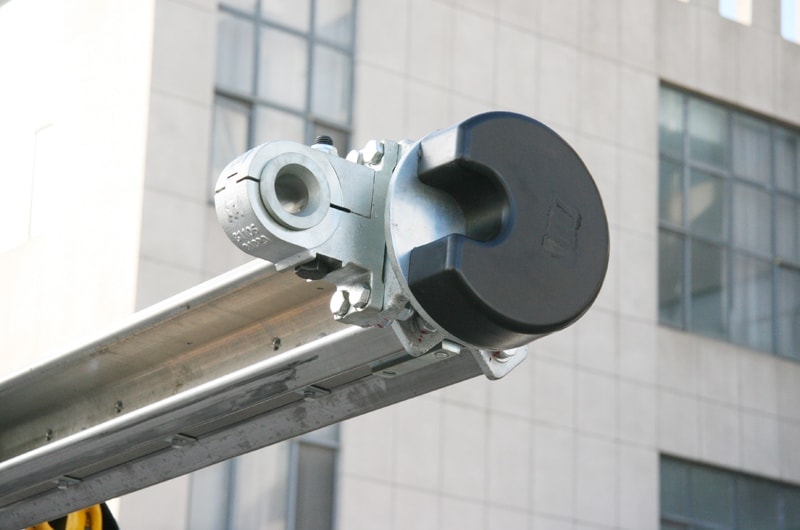

  • Feed
  • Control system
Details
  • Hydraulic Drilling Jumbos, HT82
  • Hydraulic Drilling Jumbos, HT82
  • Hydraulic Drilling Jumbos, HT82
Technical Specifications
Model HT82
Applicable cross section 3000x3000--5050x4500mm
Overall dimensions
(L×W×H)
10600x1650x2085 (2795)mm
Ground clearance 320mm
Overall weight 11500kg
Min. turning radius Inner: 3450mm outer: 5450mm
Gradeability 14°
Speed ≤7.2km/h
Cable length 70m
Drifter options
Model RC2200
YYG18U
Power 21kW 18kW
Frequency 55Hz 57Hz
Pressure 120-220bar 130-200bar
Slewing system Independent Independent
Slewing speed 0-285r/min 0-220r/min
Torque 720N.m 1050N.m
Feeder
Total length 4820/5262mm 4820/5262mm
Drill rod length 3090/3700mm 3090/3700mm
Hole depth 2770/3370mm 2770/3370mm
Weight 550/610kg 530/590kg
Feed force 13kN 13kN
Drill boom
Boom extension 1250mm
Horizontal hole coverage Full coverage
Boom rotation ±180°
Boom (lift/tilt angle) +60°/-30°
Boom swing angle ±35°
Boom weight 1645kg
Water and compressed air system
Max. flow rateof water pump 4m³/h
Air displacement of compressor 1m³/min
Electrical system
Total power 85.5kW 65.5kW
Main motor power 75kW 55kW
Voltage 380V (customized)
Chassis
Engine Yanmar diesel engine
Rated power (2200r/min) 53.7kW
Torque (1650r/min) 308N.m
Hydraulic system
Closed circuit hydrostatic drive System Hydraulic direct control system Anti-jumping function
Outside Dimensions of Jombo Drill with 3700 Feed - Side ViewOutside Dimensions of Jombo Drill with 3700 Feed - Side View
Turning RadiusTurning Radius
Cross SectionCross Section
