Underground Scaler, XMPYT56.5/32 (Mine Scaling Machine)

Request a Quote

XMPYT-56.5/325 underground scaler was developed in-house by Huatai, which is widely used for rock scaling and underground excacation in drifts, tunnels and caverns. The hydraulic scaling machine provides both quality scaling and high safety, productivity and effectiveness, which greatly speeds up scaling works and the entire excavation process.

With compact construction, the mining scaler comes with dimensions of 5650×1600×1900 mm, and a vehicle height of 1.9 m. With 1.6m width, the operator cabin can be lowered to 1.5 m at minimum. The compact scaling vehicle meets requirement on right-angle turns in 3m wide drifts and tunnels.

• The underground scaler features modular design, allowing for easy maintenance.
• The heavy-duty, compact construction makes it easy to maneuver while withstanding severe conditions.
• Built with articulated frame and rubber wheels, the mining scaler provides for stable scaling operations, small turning radius, and strong gradability, making it adapt to various site constructions.
• The hydraulic scaling machine is contructed with automatic spring-set/hydraulic release wet-disc parking brake.
• Ergonomic FOPS certified operator cabin and HVAC system maintains excellent personnel safety while providing high visibility and comfort. The operator cabin is designed with rock guard in the front, which protects operator against being injured. The working lights on the roof can be manually adjusted, which provides better illumination underground to improve a miner's ability to see and to avoid potential hazards in the mine.
• The mining scaler is charaterized by stable steering, accurate positioning, optimized hydraulic circuit, etc.
• Level/oil temperature protection provides long service life for drilling accessories.
• Main hydraulic elements are from well-know brands, which ensures the whole scaling vehicle's quality and performance.
• The mining scalers drive safety through purpose-built design. The action of multiple mechanisms will be activated simultaneously when encountering danger, including lifting for push blade and outriggers, hydraulic hammer retraction, and vehicle reverse. Rapid evacuation is ensured to greatly protect worker and equipment.
• All hydraulic scaling machines are easy to operate and provide high quality scaling for safe underground works. Therefore, Huatai has been partnered with mining and tunnelling customers around the world.

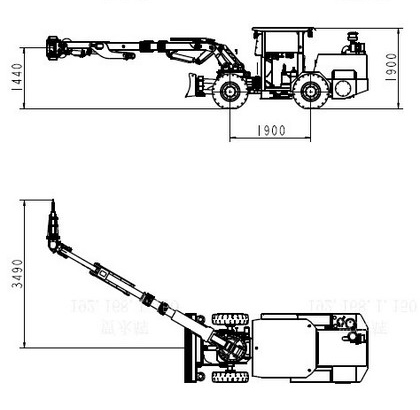

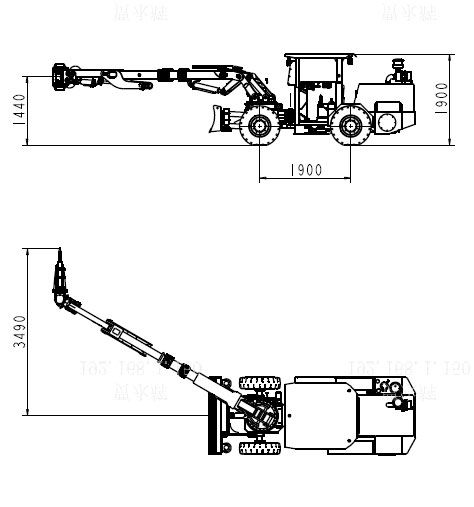

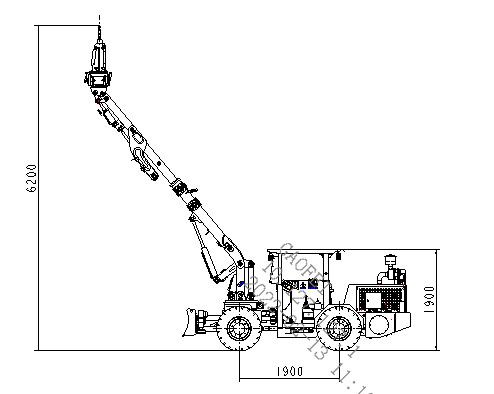

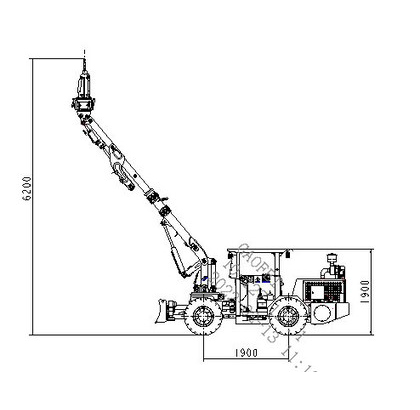

Scaling Coverage

Scaling Coverage

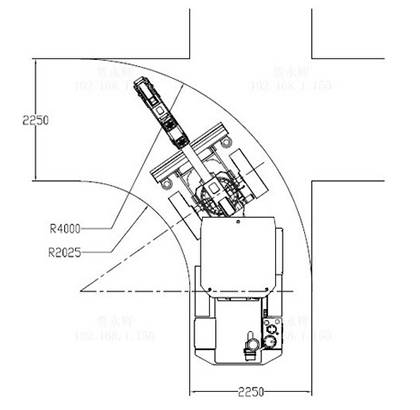

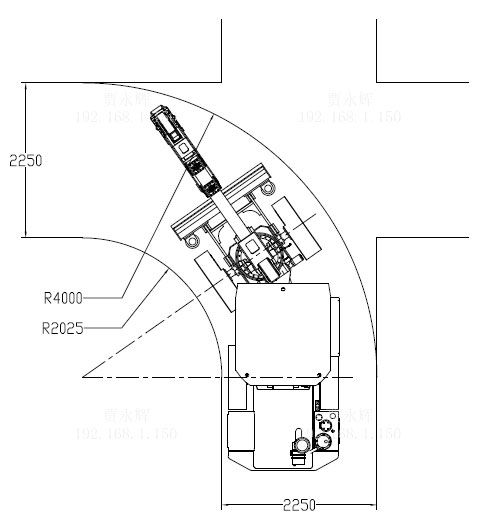

Turning Radius
