Underground Mining Equipment

Hydraulic Drilling Jumbos, HT82-S (for Tunneling)

Hydraulic Drilling Jumbos, HT82-S
Hydraulic Drilling Jumbos, HT82-S Hydraulic Drilling Jumbos, HT82-S Hydraulic Drilling Jumbos, HT82-S Hydraulic Drilling Jumbos, HT82-S
Request a Quote

Our hydraulic drilling jumbo is specifically designed for efficient excavation in narrow tunnels and underground passages within metal mines and other subsurface engineering projects.

Why Choose Our Hydraulic Drilling Jumbo?

  • Full hydraulic drilling system with integrated anti-jamming function
  • Compact structure enabling superior mobility in confined spaces
  • Enhanced operational efficiency and construction quality

Our equipment optimizes underground working conditions while delivering reliable performance for demanding tunneling applications.

Standard Configurations
  • Drifter C2200/14U
  • Boom with double triangle floating support system
  • Anti-jamming function
  • Chassis with Yanmar 4-cylinder diesel engine
  • Feed
  • Control system
Technical Specifications
Model HT82-S
Applicable cross section 2500x2500--3200x3200mm
Overall dimensions
(L×W×H)
9900x1500x2070(2770)mm
Ground clearance 310mm
Overall weight 10500kg
Min. turning radius Inner: 2450mm / Outer: 5480mm
Gradeability 14°
Speed ≤4.6km/h
Drifter (options)
Model RC2200
YYG18U
YYG14U
Power 21kW 18kW 14kW
Frequency 55Hz 57Hz 50Hz
Pressure 120-220bar 130-200bar 130-180bar
Slewing system Independent Independent Independent
Slewing speed 0-230r/min 0-220r/min 0-220r/min
Max. Torque 720N.m 1050N.m 1050N.m
Feeder RC2200/YYG18U/YYG14U
Total length 4820mm 5430mm
Drill rod length 3090mm 3700mm
Hole depth 2770mm 3370mm
Drill boom
Boom extension 1250mm
Horizontal hole coverage Full coverage
Sliding frame rotation ±180°
Lift/tilt angle) +60° -30°
Swing angle ±35°
Water and compressed air system
Max. flow rate of water pump (12bar) 4m³/h
Air displacement of compressor 1m³/min
Electric drive system RC2200/YYG18U/YYG14U
Total power 65.5kW
Main motor power 55kW
Rated voltage 380V (customized)
Chassis
Engine Yuchai diesel engine
Rated power (2400r/min) 73.6kW
Torque (1400-1850r/min) 360N.m
Hydraulic oil tank 40L

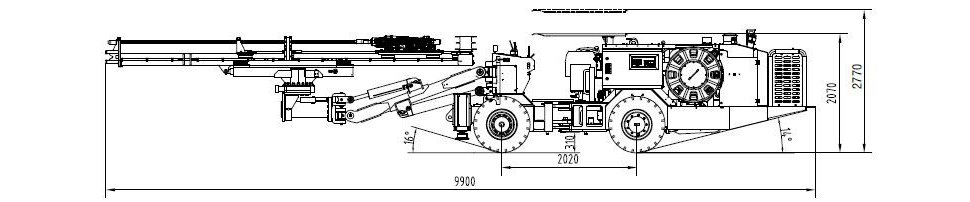

Outside Dimensions of Jombo Drill with 3090 Feed - Side ViewOutside Dimensions of Jombo Drill with 3090 Feed - Side View

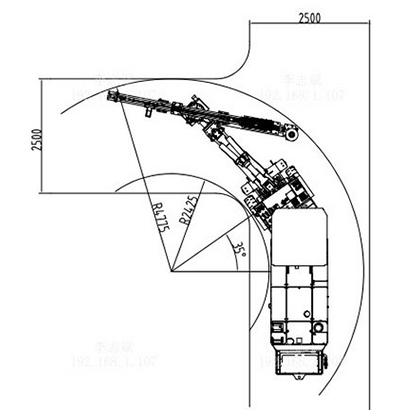

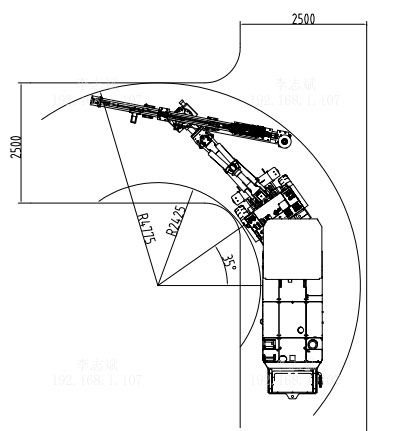

Turning RadiusTurning Radius

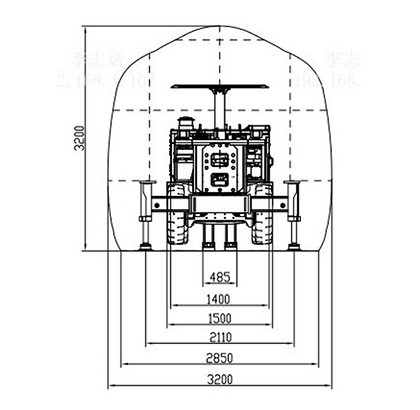

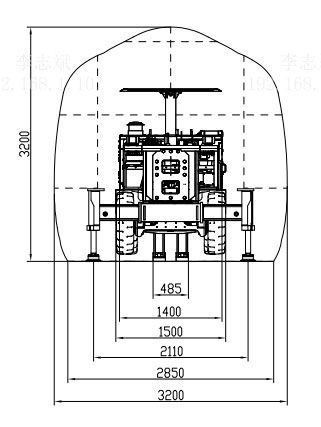

Cross SectionCross Section
